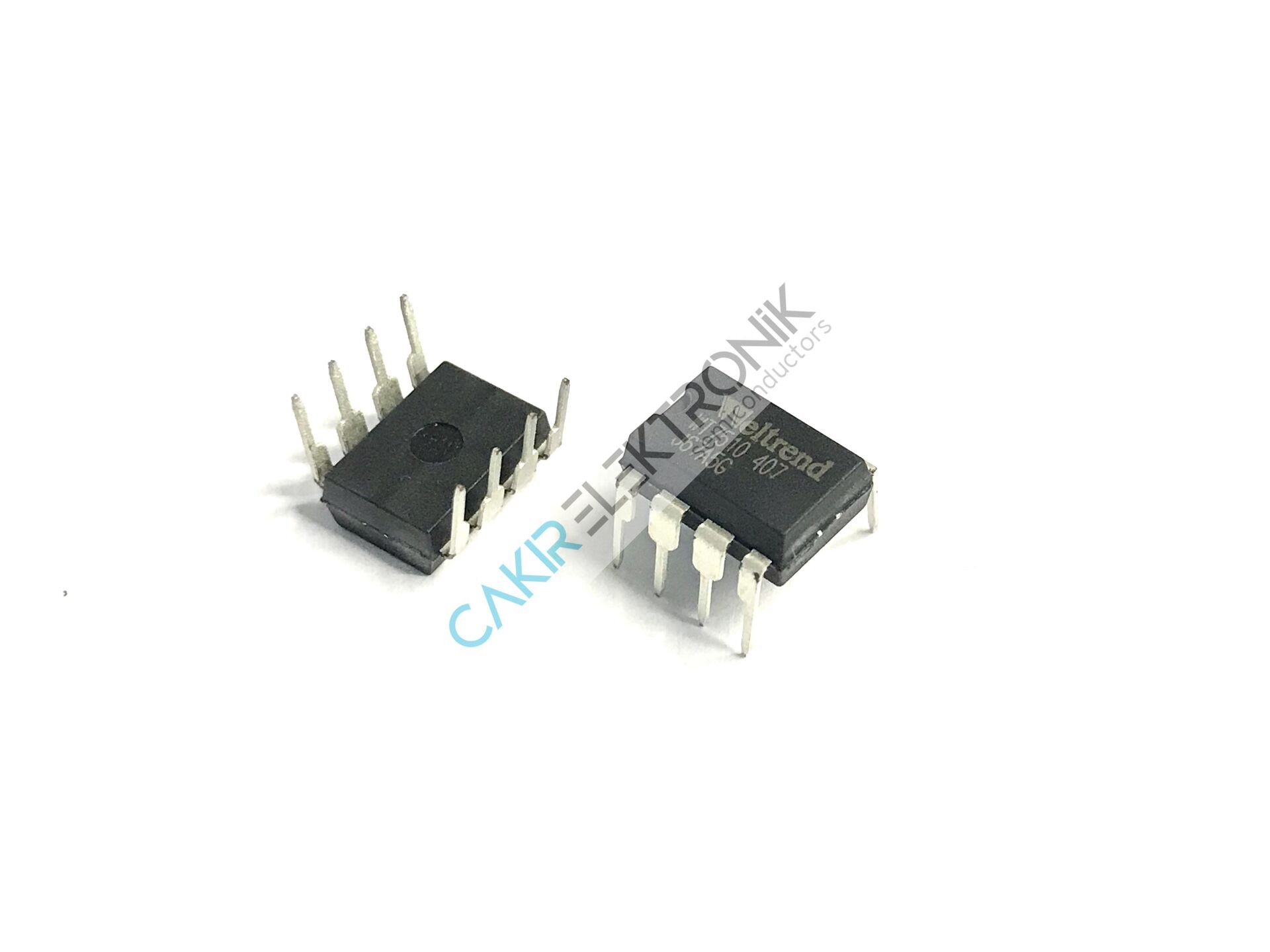

WT7510 , The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage level
Kategori
Stok Kodu
11-5443
2,00 USD + KDV
101,66 TL
Kalan Stok : 30
WT7510 , The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage level , The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage levelWT7510 , The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage levelWT7510 , The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage level•
The Over Voltage Detector (OVD) monitors 3.3V, 5V, 12V input voltage level.
•
The Under Voltage Detector (UVD) monitors 3.3V, 5V input voltage level.
•
Both of the power good output (PGO) and fault protection latch (FPL_N) are Open Drain Output.
•
75 ms time delay for UVD.
•
300 ms time delay for PGO.
•
38 ms for PDON_N input signal De–bounce.
•
73 us for internal signal De–glitches.
•
2.4 ms time delay for PDON_N turn-off FPL_N.
PIN ASSIGNMENT AND PACKAGE TYPE
PIN DESCRIPTION
Pin No. Pin Name TYPE
Description
1
PGI
I
power good input pin
2
GND
P
Ground
3
FPL_N
O
fault protection latch output pin(open drain output)
4
PDON_N
I
protection detector function ON/OFF control input pin
5
V33
I
3.3V input pin
6
V5
I
5V input pin
7
VCC
I
Supply voltage / 12V input pin
8
PGO
O
power good output pin(open drain output)
8
7
6
5
1
2
3
4
PGI
GND
FPL_N
PDON_N
PGO
VCC
V5
V
33
Package type
ORDERING INFORMATION
8–Pin Plastic DIP
WT7510–N080WT–12
8–Pin Plastic SOIC WT7510–S080WT–12
