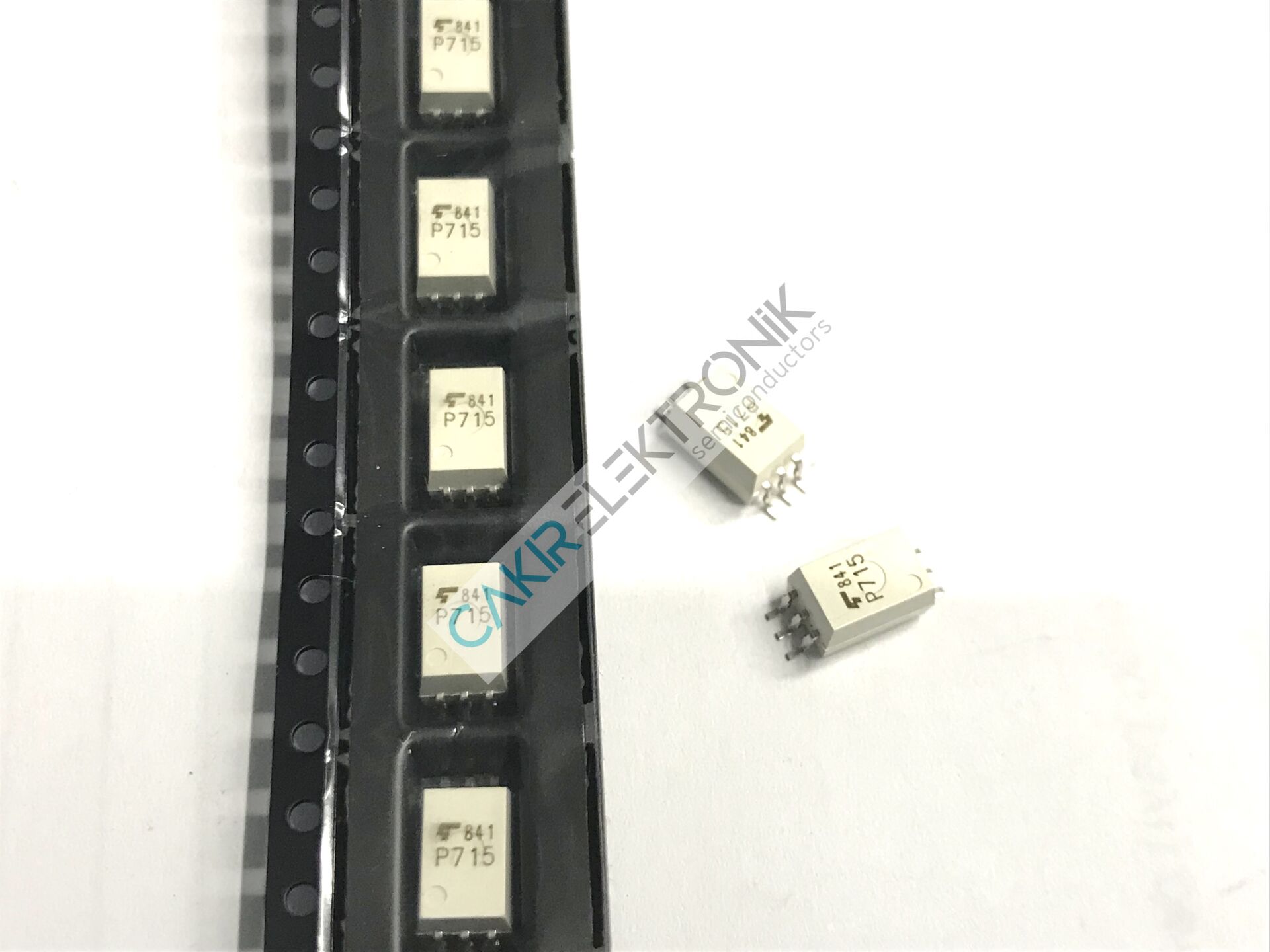

TLP715 (TP,F) SDIP-6 , P715 OPTO , HIGH SPEED , Logic Output Optoisolator 5Mbps Push-Pull, Totem Pole 5000Vrms 1 Channel 10kV/µs CMTI 6-SDIP Gull Wing
Kategori
Stok Kodu
11-6229
TLP715 (TP,F) SDIP-6 , P715 OPTO , HIGH SPEED , Logic Output Optoisolator 5Mbps Push-Pull, Totem Pole 5000Vrms 1 Channel 10kV/µs CMTI 6-SDIP Gull Wing
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
-
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Obsolete
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
10kV/µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Push-Pull, Totem Pole
|
|
|
Current - Output / Channel
|
25 mA
|
|
|
Data Rate
|
5Mbps
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
250ns, 250ns
|
|
|
Rise / Fall Time (Typ)
|
30ns, 30ns
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.6V
|
|
|
Current - DC Forward (If) (Max)
|
20mA
|
|
|
Voltage - Supply
|
4.5V ~ 20V
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.268", 6.80mm Width)
|
|
|
Supplier Device Package
|
6-SDIP Gull Wing
|
|
|
Base Product Number
|
|
