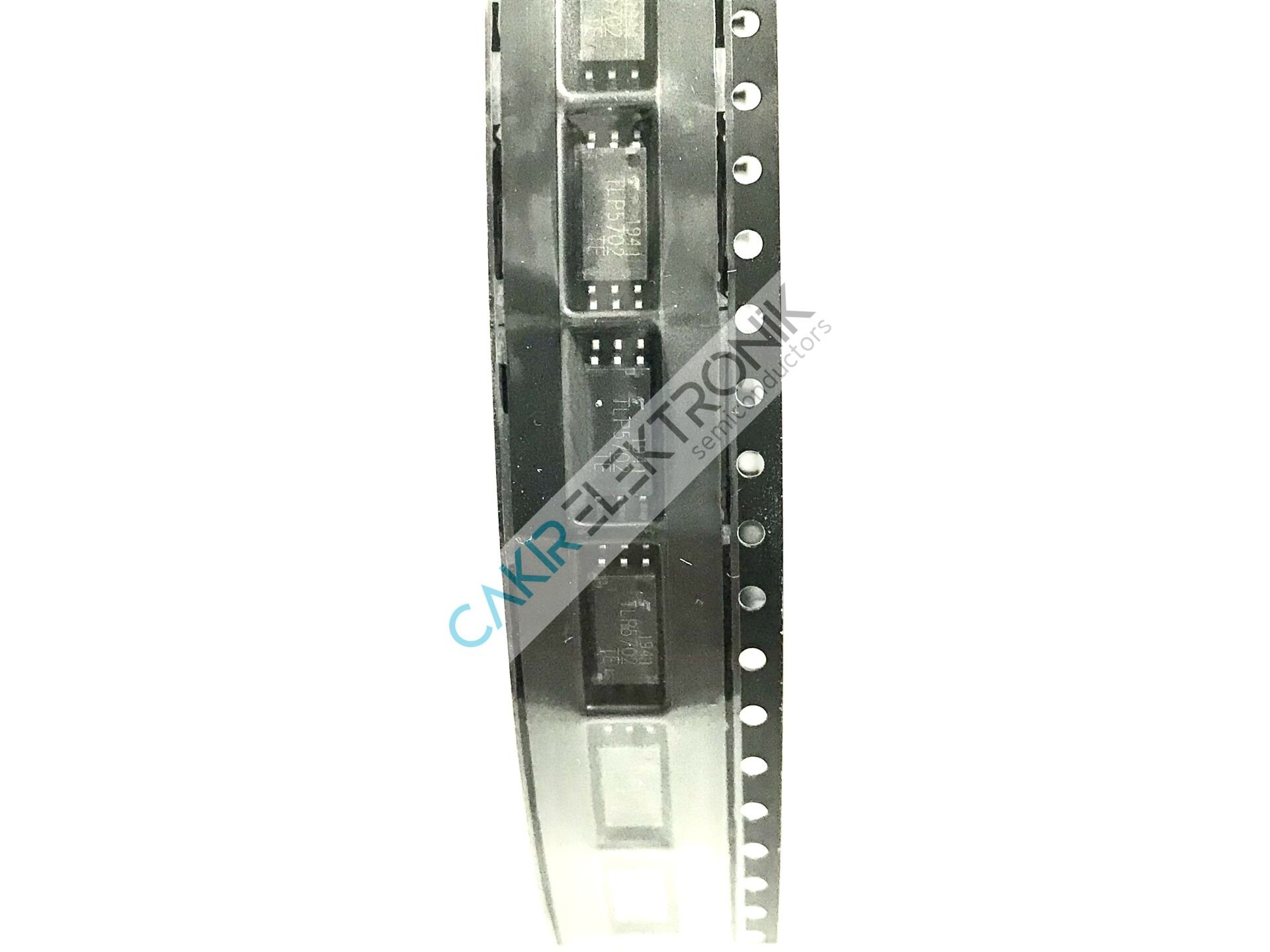

TLP5702 (TP.E) T SOIC-6 LOGIC OUTPUT , Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
Kategori
Stok Kodu
11-5453
1,40 USD + KDV
73,92 TL
Kalan Stok : 25
TLP5702 (TP.E) T SOIC-6 LOGIC OUTPUT , Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
20kV/µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Push-Pull, Totem Pole
|
|
|
Current - Output / Channel
|
1 A
|
|
|
Data Rate
|
-
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
200ns, 200ns
|
|
|
Rise / Fall Time (Typ)
|
15ns, 8ns
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
|
|
Current - DC Forward (If) (Max)
|
20mA
|
|
|
Voltage - Supply
|
15V ~ 30V
|
|
|
Operating Temperature
|
-40°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package
|
6-SO
|
|
|
Base Product Number
|
|
