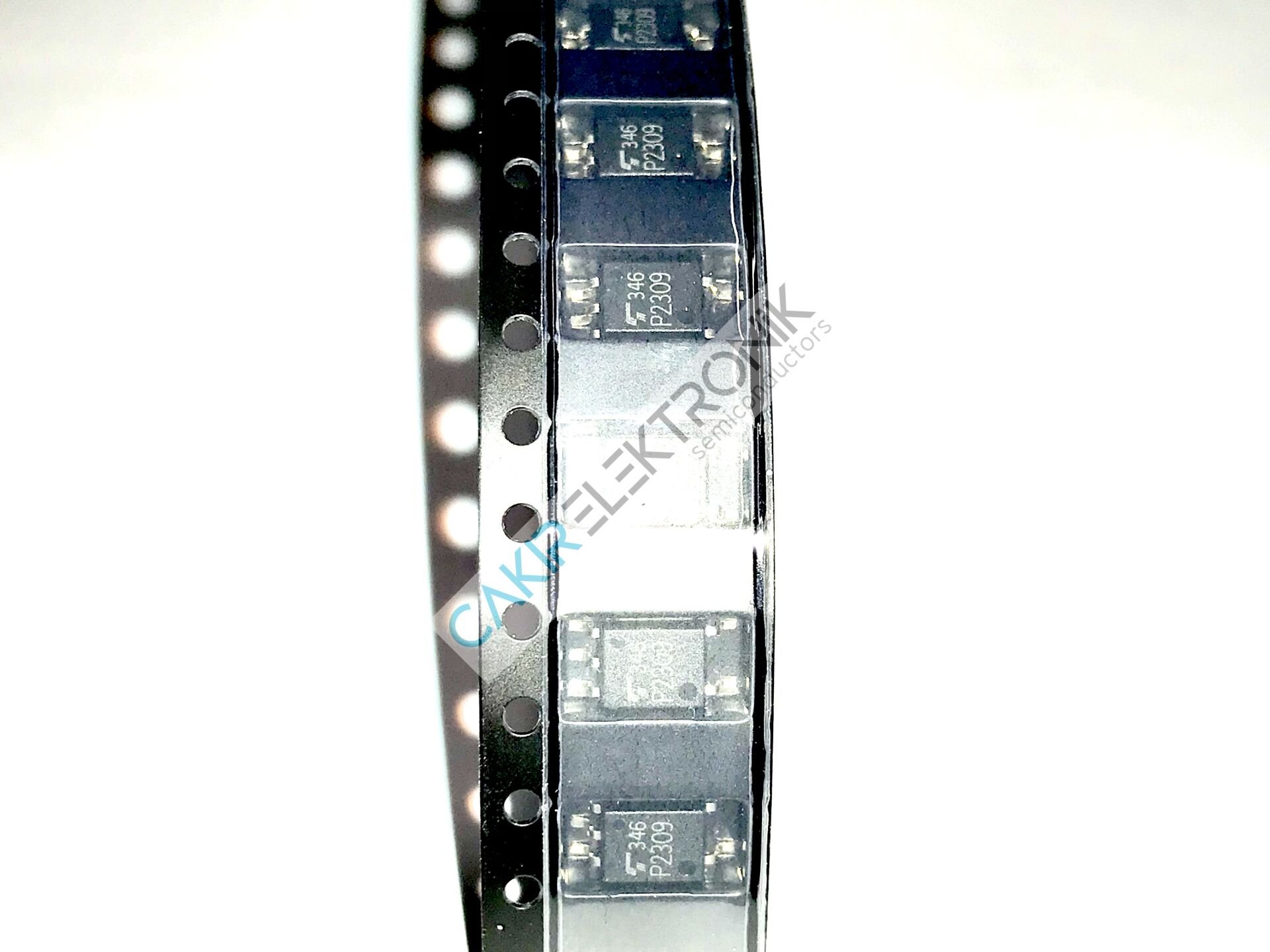

TLP2309 (TPL,E) , P2309 , SO-6 LOGIC OUTPUT , Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO, 5 Lead
Kategori
Stok Kodu
11-5452
0,65 USD + KDV
34,32 TL
Kalan Stok : 25
TLP2309 (TPL,E) , P2309 , SO-6 LOGIC OUTPUT , Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO, 5 Lead
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
15% @ 16mA
|
|
|
Current Transfer Ratio (Max)
|
-
|
|
|
Turn On / Turn Off Time (Typ)
|
1µs, 1µs (Max)
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
20V
|
|
|
Current - Output / Channel
|
8mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Vce Saturation (Max)
|
-
|
|
|
Operating Temperature
|
-40°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.179", 4.55mm Width), 5 Leads
|
|
|
Supplier Device Package
|
6-SO, 5 Lead
|
|
|
Base Product Number
|
|
