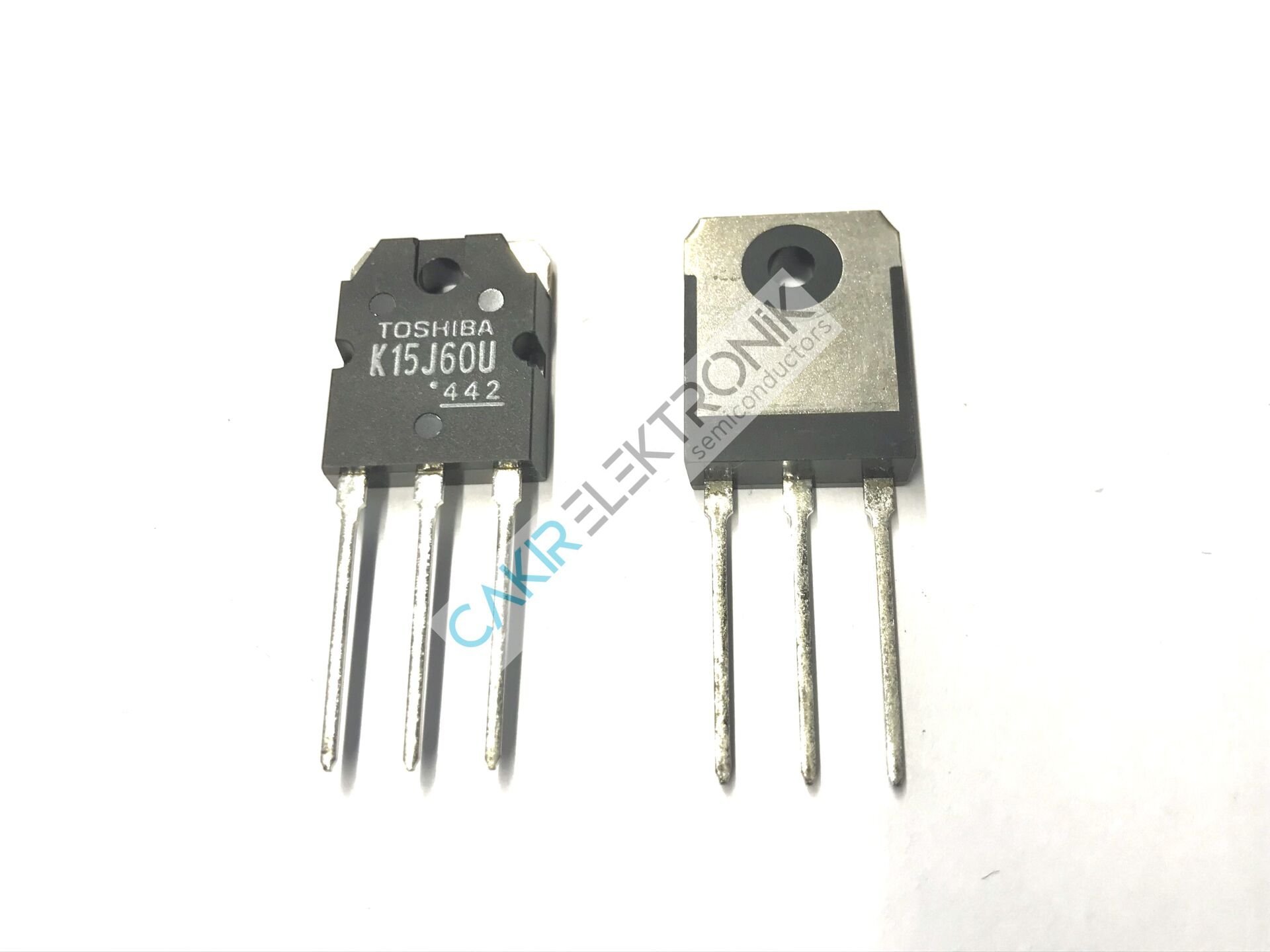

TK15J60U , K15J60U , 15J60 , N-Channel 600 V 15A (Ta) 170W (Tc) Through Hole TO-3P(N)
Kategori
Stok Kodu
11-6335
2,85 USD + KDV
150,48 TL
Kalan Stok : 10
TK15J60U , K15J60U , 15J60 , N-Channel 600 V 15A (Ta) 170W (Tc) Through Hole TO-3P(N)
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
600 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
300mOhm @ 7.5A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
5V @ 1mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
17 nC @ 10 V
|
|
|
Vgs (Max)
|
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
950 pF @ 10 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
170W (Tc)
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
TO-3P(N)
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
