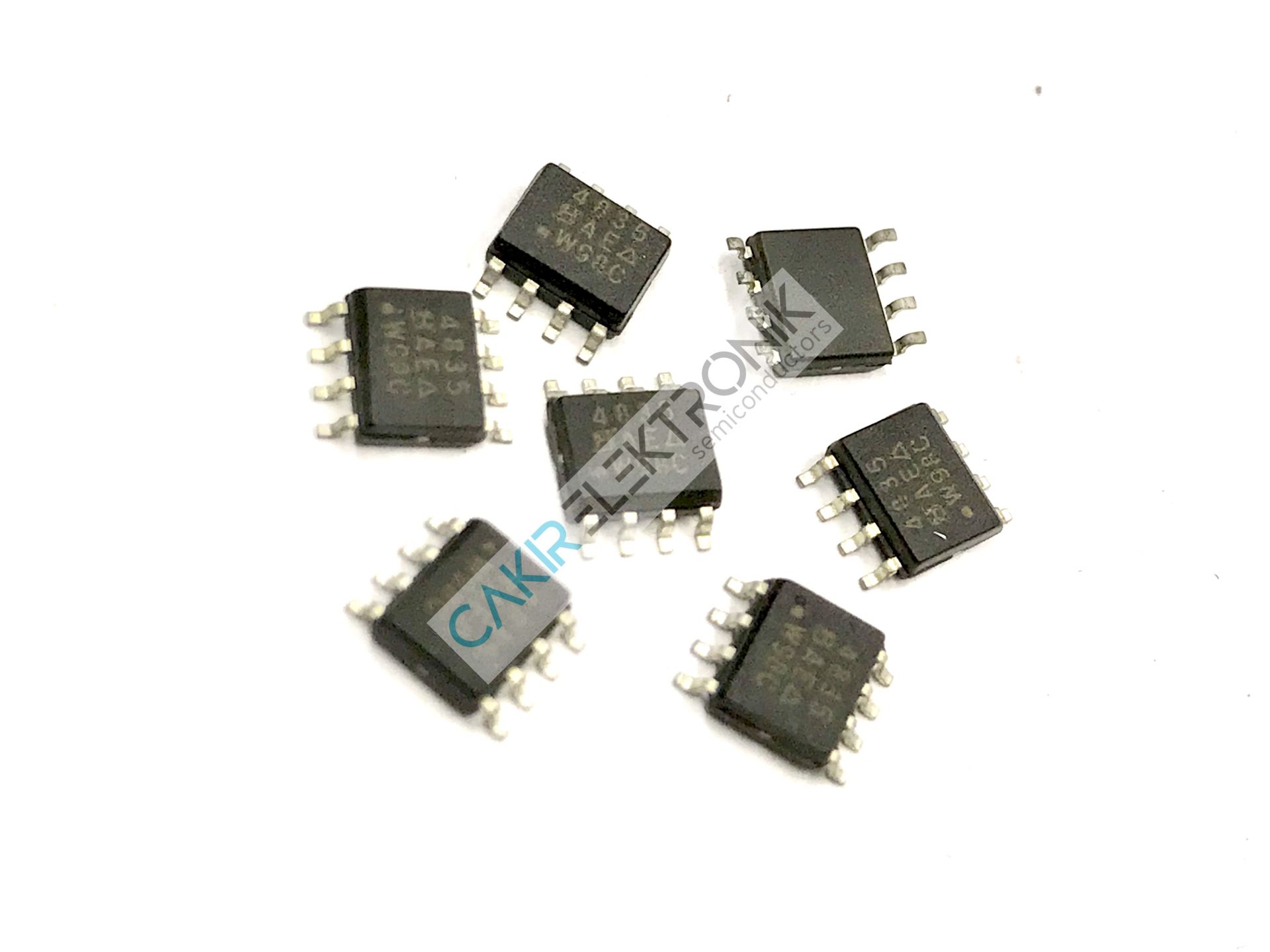

SI4835DY - 4835 - SI4835 - P KANAL 8,8A. 30V. Logic Level PowerTrench MOSFET
Kategori
Stok Kodu
11-937
1,00 USD + KDV
54,00 TL
Kalan Stok : 111
SI4835DY - 4835 - SI4835 - P KANAL 8,8A. 30V. Logic Level PowerTrench MOSFET
P-Channel 30 V 8.8A (Ta) 1W (Ta) Surface Mount 8-SOIC
P-Channel 30 V 8.8A (Ta) 1W (Ta) Surface Mount 8-SOIC
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
20mOhm @ 8.8A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
27 nC @ 10 V
|
|
|
Vgs (Max)
|
±25V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1680 pF @ 15 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
1W (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-SOIC
|
