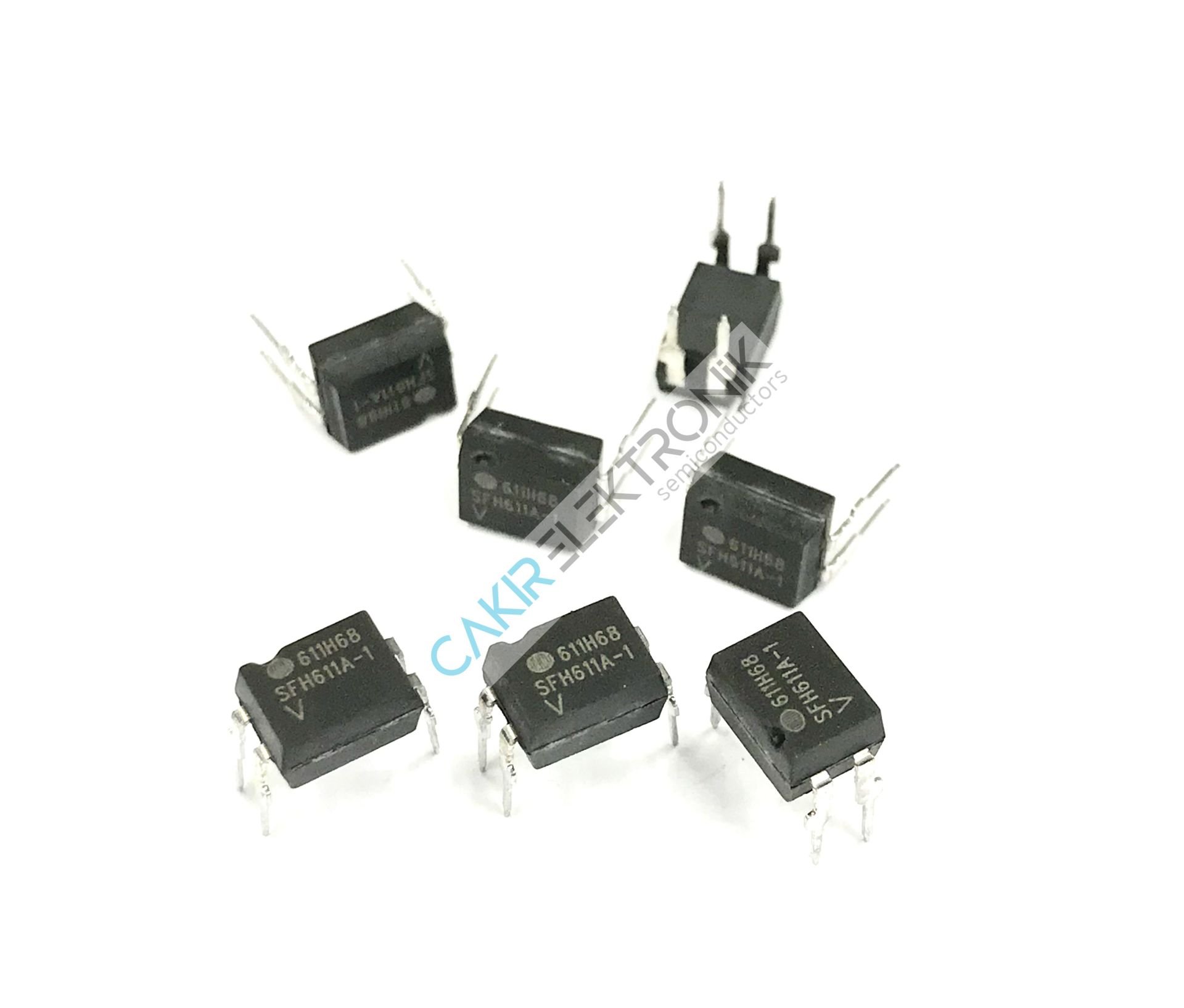

SFH611A-1 , SFH611 , SFH611A ,Transistor Output Optocouplers Phototransistor Out Single CTR 40-80% S Serisi Optocoupler

IdeaSoft^® | E-Ticaret paketleri ile hazırlanmıştır.

Manufacturer:	Vishay
Product Category:	Transistor Output Optocouplers
RoHS:	Details
Mounting Style:	Through Hole
Package/Case:	PDIP-4
Number of Channels:	1 Channel
Isolation Voltage:	5300 Vrms
Output Type:	NPN Phototransistor
Current Transfer Ratio - Min:	40 %
Current Transfer Ratio - Max:	80 %
If - Forward Current:	60 mA
Vf - Forward Voltage:	1.65 V
Maximum Collector Emitter Voltage:	70 V
Maximum Collector Current:	50 mA
Maximum Collector Emitter Saturation Voltage:	400 mV
Rise Time:	2 us
Fall Time:	11 us
Vr - Reverse Voltage:	6 V
Pd - Power Dissipation:	150 mW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 100 C
Packaging:	Tube
Brand:	Vishay Semiconductors
Configuration:	1 Channel
Current Transfer Ratio:	40 %
Height:	3.81 mm
Length:	4.83 mm
Product Type:	Transistor Output Optocouplers
	4000
Subcategory:	Optocouplers
Width:	6.81 mm
Unit Weight:	260 mg

SFH611A-1 , SFH611 , SFH611A ,Transistor Output Optocouplers Phototransistor Out Single CTR 40-80%
