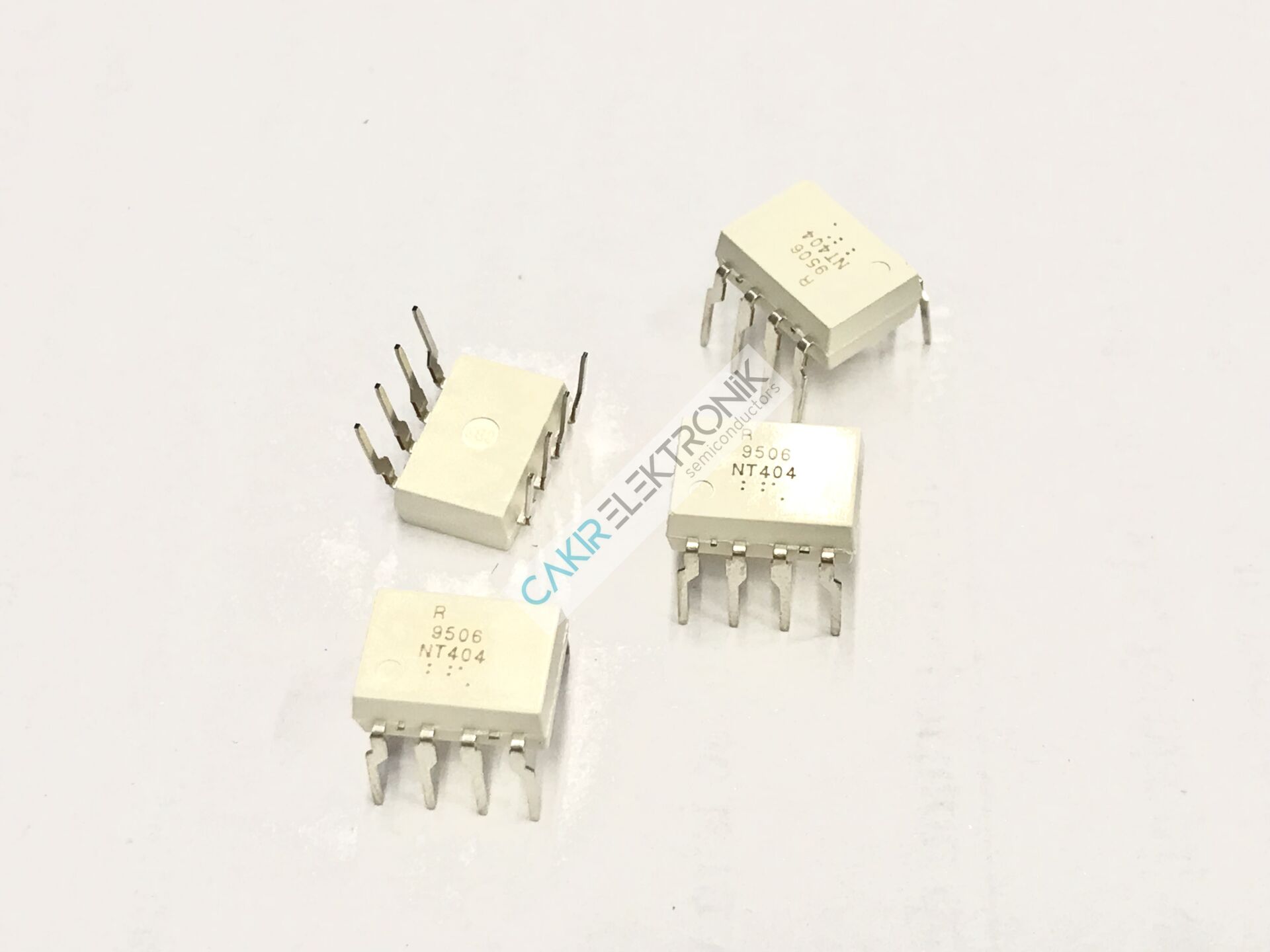

PS9506-AX , PS9506 , PS9506-V-AX , 9506 , 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
Kategori
Stok Kodu
11-5330
8,00 USD + KDV
382,21 TL
Kalan Stok : 10
PS9506-AX , PS9506 , PS9506-V-AX , 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
400ns, 400ns
|
|
|
Pulse Width Distortion (Max)
|
250ns
|
|
|
Rise / Fall Time (Typ)
|
50ns, 50ns
|
|
|
Current - Output High, Low
|
400mA, 400mA
|
|
|
Current - Peak Output
|
600mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.56V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Voltage - Output Supply
|
10V ~ 30V
|
|
|
Operating Temperature
|
-40°C ~ 110°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Approval Agency
|
CSA, SEMKO, UL
|
|
|
Base Product Number
|
