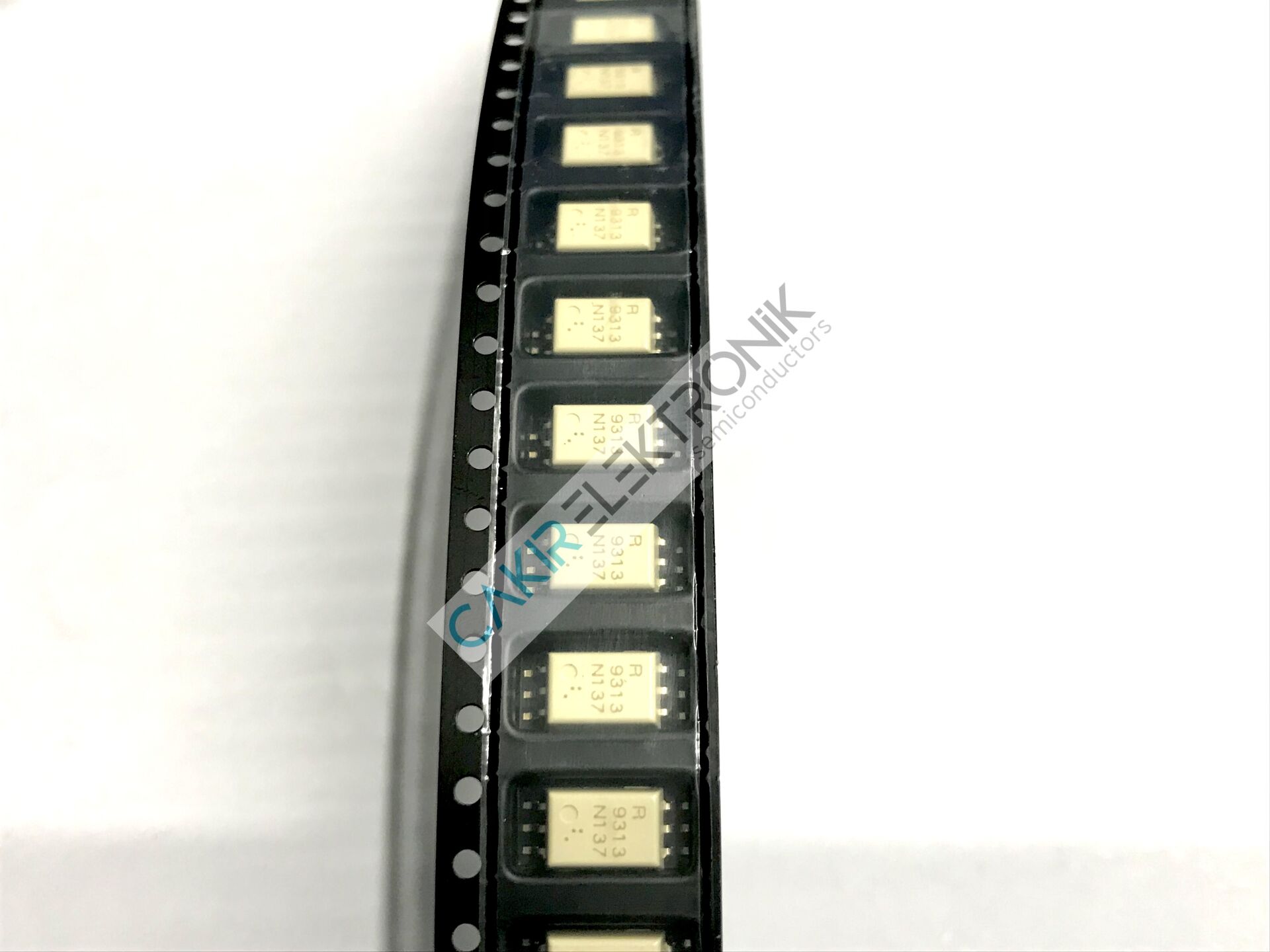

PS9313L-V-E3-AX SDIP-6 , 9313 opto , P9313 ,Logic Output Optoisolator 1Mbps Open Collector 5000Vrms 1 Channel 15kV/µs CMTI 6-SDIP Gull Wing
Kategori
Stok Kodu
11-5450
3,40 USD + KDV
179,52 TL
Kalan Stok : 20
PS9313L-V-E3-AX SDIP-6 , 9313 opto , P9313 ,Logic Output Optoisolator 1Mbps Open Collector 5000Vrms 1 Channel 15kV/µs CMTI 6-SDIP Gull Wing
|
Manufacturer
|
Renesas Electronics Corporation
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
15kV/µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Open Collector
|
|
|
Current - Output / Channel
|
15 mA
|
|
|
Data Rate
|
1Mbps
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
750ns, 500ns
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.56V
|
|
|
Current - DC Forward (If) (Max)
|
25mA
|
|
|
Voltage - Supply
|
4.5V ~ 20V
|
|
|
Operating Temperature
|
-40°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.268", 6.80mm Width)
|
|
|
Supplier Device Package
|
6-SDIP Gull Wing
|
|
|
Base Product Number
|
