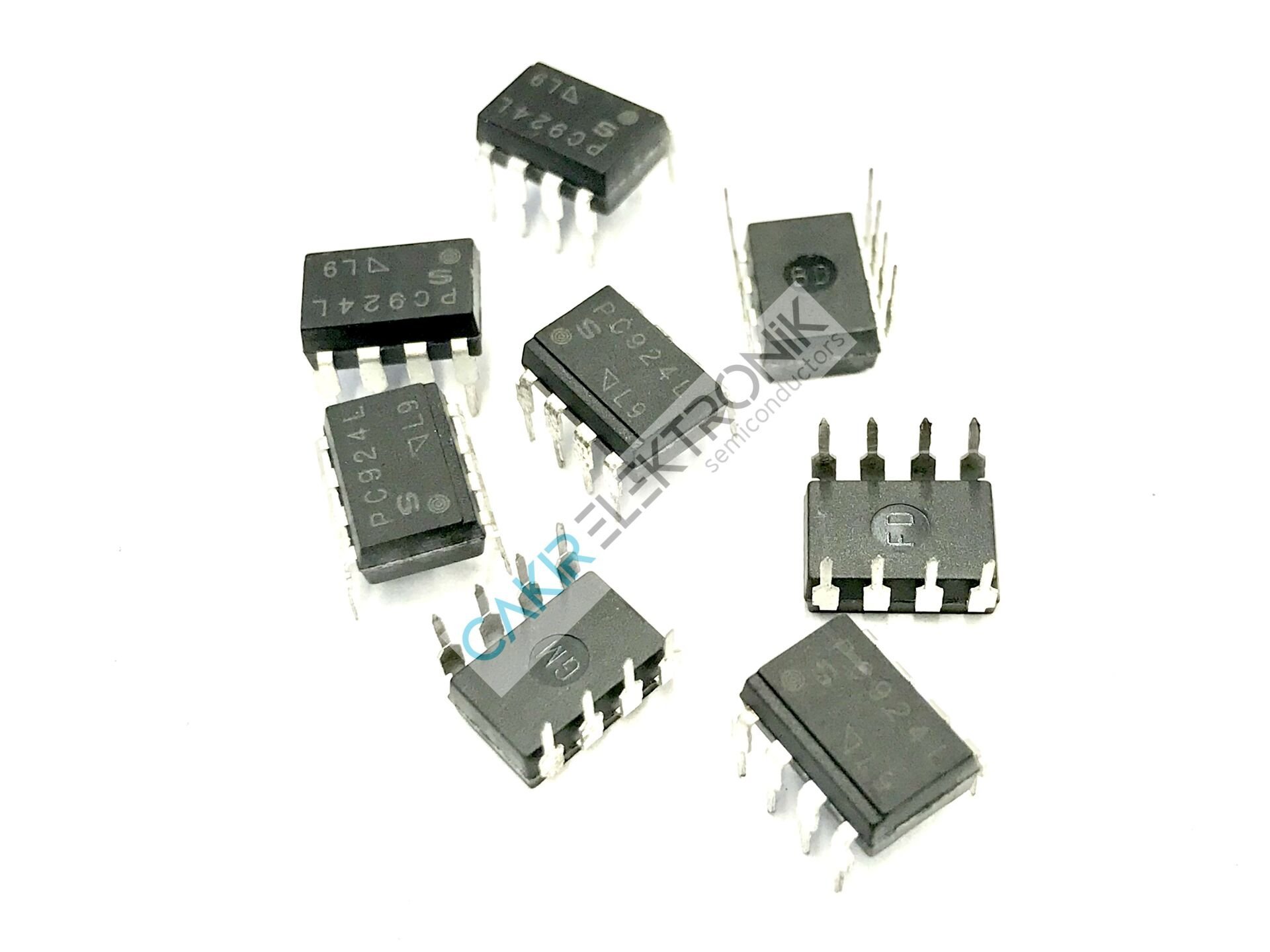

PC924L , PC924 , 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
Kategori
Stok Kodu
11-5402
1,60 USD + KDV
74,62 TL
Kalan Stok : 25
PC924L , PC924 , 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Obsolete
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
15kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
2µs, 2µs
|
|
|
Pulse Width Distortion (Max)
|
-
|
|
|
Rise / Fall Time (Typ)
|
200ns, 200ns
|
|
|
Current - Output High, Low
|
-
|
|
|
Current - Peak Output
|
600mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Voltage - Output Supply
|
15V ~ 30V
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Approval Agency
|
UR, VDE
|
