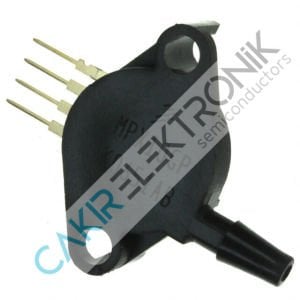

MPX2010GP-ND - MPX2010 - MPX2010GP - SENSOR 1.45PSIG 0.19'' .025V , BASINÇ SENSÖRÜ
Kategori
Stok Kodu
11-5370
39,00 USD + KDV
1.965,60 TL
Kalan Stok : 2
MPX2010GP-ND - MPX2010 - SENSOR 1.45PSIG 0.19" .025V , BASINÇ SENSÖRÜ
|
Manufacturer
|
NXP USA Inc.
|
|
|
Series
|
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|
Applications
|
Board Mount
|
|
|
Pressure Type
|
Vented Gauge
|
|
|
Operating Pressure
|
1.45PSI (10kPa)
|
|
|
Output Type
|
Wheatstone Bridge
|
|
|
Output
|
0 mV ~ 25 mV (10V)
|
|
|
Accuracy
|
±1%
|
|
|
Voltage - Supply
|
10V ~ 16V
|
|
|
Port Size
|
Male - 0.19" (4.93mm) Tube
|
|
|
Port Style
|
Barbed
|
|
|
Features
|
Temperature Compensated
|
|
|
Termination Style
|
PC Pin
|
|
|
Maximum Pressure
|
10.88PSI (75kPa)
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
4-SIP Module
|
|
|
Supplier Device Package
|
-
|
|
|
Base Product Number
|
