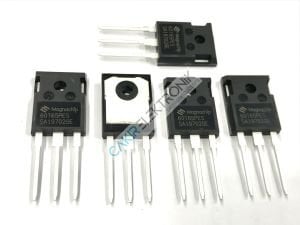

MBQ60T65PES , 60T65PES , 60T65 MAGNACHIP

Type Designator: MBQ60T65PES

Type: IGBT

Marking Code: 60T65PES

Type of IGBT Channel: N-Channel

Maximum Power Dissipation (Pc), W: 428

Maximum Collector-Emitter Voltage |Vce|, V: 650

Maximum Gate-Emitter Voltage |Vge|, V: 20

Maximum Collector Current |Ic| @25℃, A: 100

Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.85

Maximum Junction Temperature (Tj), ℃: 175

Rise Time (tr), typ, nS: 54

Collector Capacity (Cc), typ, pF: 270

Package: TO247
