LM18-3008PA , Proximity Sensor , Proximity Switch
Kategori
Stok Kodu
RF-2.4
193,59 TL + KDV
232,31 TL
Kalan Stok : 10

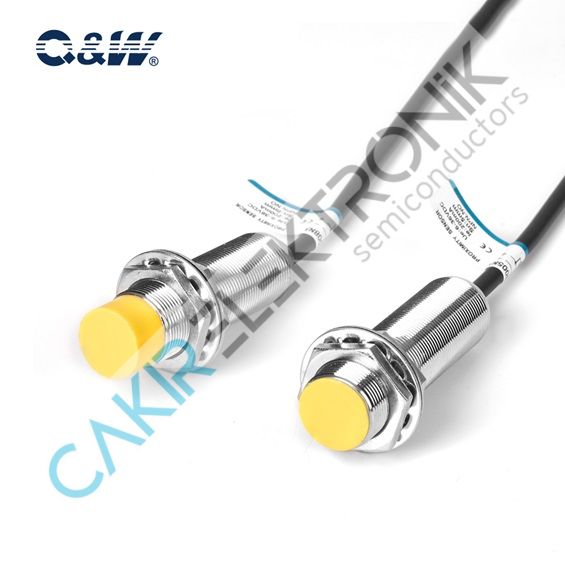

LM18-3008PA , Proximity Sensor , Proximity Switch
copper shell; 2, Cable length2 metres , Ip65
Sensor Tipi: Endüktif, Düz Kafa Sensor Çapı: 18mm Gövde şekli: Silindirik, Metal, Algılama Mesafesi: 8mm Çalışma Voltajı: 10-30V DC Çıkış: NPN NO 2m 3 kablolu
| Detect distance |
5mm | ||||
| NO | LM18-3005NA | ||||
| NPN | NC | LM18-3005NB | |||
| NO+NC | LM18-3005NC | ||||
| DC | PNP | NO | LM18-3005PA | ||
| Flush | 6-36VDC | NC | LM18-3005PB | ||
| Type | NO+NC | LM18-3005PC | |||
| Two wire | NO | LM18-3005LA | |||
| system | NC | LM18-3005LB | |||
| AC | Control Silicon | NO | LM18-2005A | ||
| 90-250VAC | NC | LM18-2005B | |||
| NO+NC | |||||
| AC | Relay Output | ||||
| Detect distance | 8MM | ||||
| NO | LM18-3008NA | ||||
| DC | NPN | NC | LM18-3008NB | ||
| NO+NC | LM18-3008NC | ||||
| DC | NO | LM18-3008PA | |||
| Non- | 6-36VDC | PNP | NC | LM18-3008PB | |
| Flush | NO+NC | LM18-3008PC | |||
| Type | DC | Two wire | NO | LM18-3008LA | |
| AC | system | NC | LM18-3008LB | ||
| AC 90-250VAC | control silicon | NO | LM18-2008A | ||
| NC | LM18-2008B | ||||
| NO+NC | |||||
| Relay Output | |||||
| Ouput current | DC | 200mA | |||
| Relay output | 300mA | ||||
| Output voltage drop | DC/AC below 3V/ 10V | two wire below 3.9V | |||
| Consumption current | DC below 15mA | AC Below10mA | |||
| Detect object | 18 x 18 x 1 A3 iron | ||||
| Repeated precision | 0.02 | ||||
| Response frequency | DC/AC | 200Hz /25Hz | |||
| Ambient Temperature | -25℃~ +75℃ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
