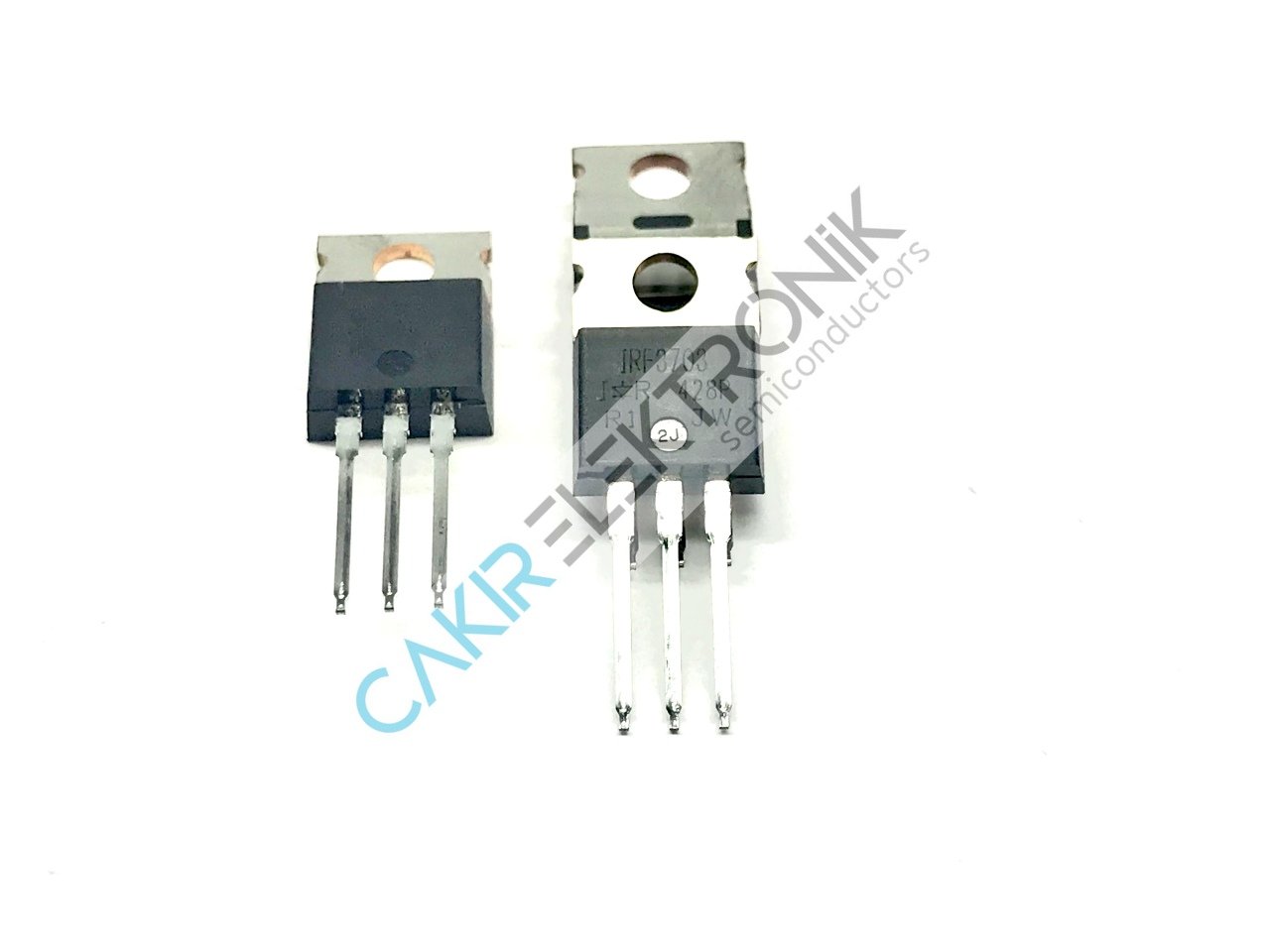

IRF3703 - N KANAL 30V. 210AMP. MOSFET , N-Channel 30 V 210A (Tc) 3.8W (Ta), 230W (Tc) Through Hole TO-220AB
Kategori
Stok Kodu
11-4717
4,00 USD + KDV
216,00 TL
Kalan Stok : 33
IRF3703 - N KANAL 30V. 210AMP. MOSFET , N-Channel 30 V 210A (Tc) 3.8W (Ta), 230W (Tc) Through Hole TO-220AB
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
7V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
2.8mOhm @ 76A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
209 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
8250 pF @ 25 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
3.8W (Ta), 230W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
TO-220AB
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
