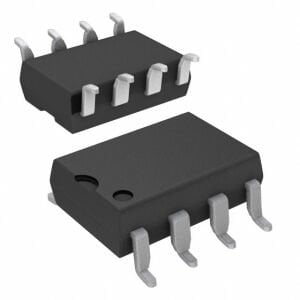

HCPL-2611-500E - HCPL2611 - A2611 - HCPL-2611 - SMD-8 , Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 15kV/µs CMTI 8-DIP Gull Wing
Kategori
Stok Kodu
11-5345
2,80 USD + KDV
131,71 TL
Kalan Stok : 20
HCPL2611 - A2611 - HCPL-2611 - HCPL-2611-500E - SMD-8 , Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 15kV/µs CMTI 8-DIP Gull Wing
|
Manufacturer
|
Broadcom Limited
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
15kV/µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Open Collector, Schottky Clamped
|
|
|
Current - Output / Channel
|
50 mA
|
|
|
Data Rate
|
10MBd
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
100ns, 100ns
|
|
|
Rise / Fall Time (Typ)
|
24ns, 10ns
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.5V
|
|
|
Current - DC Forward (If) (Max)
|
20mA
|
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SMD, Gull Wing
|
|
|
Supplier Device Package
|
8-DIP Gull Wing
|
|
|
Base Product Number
|
