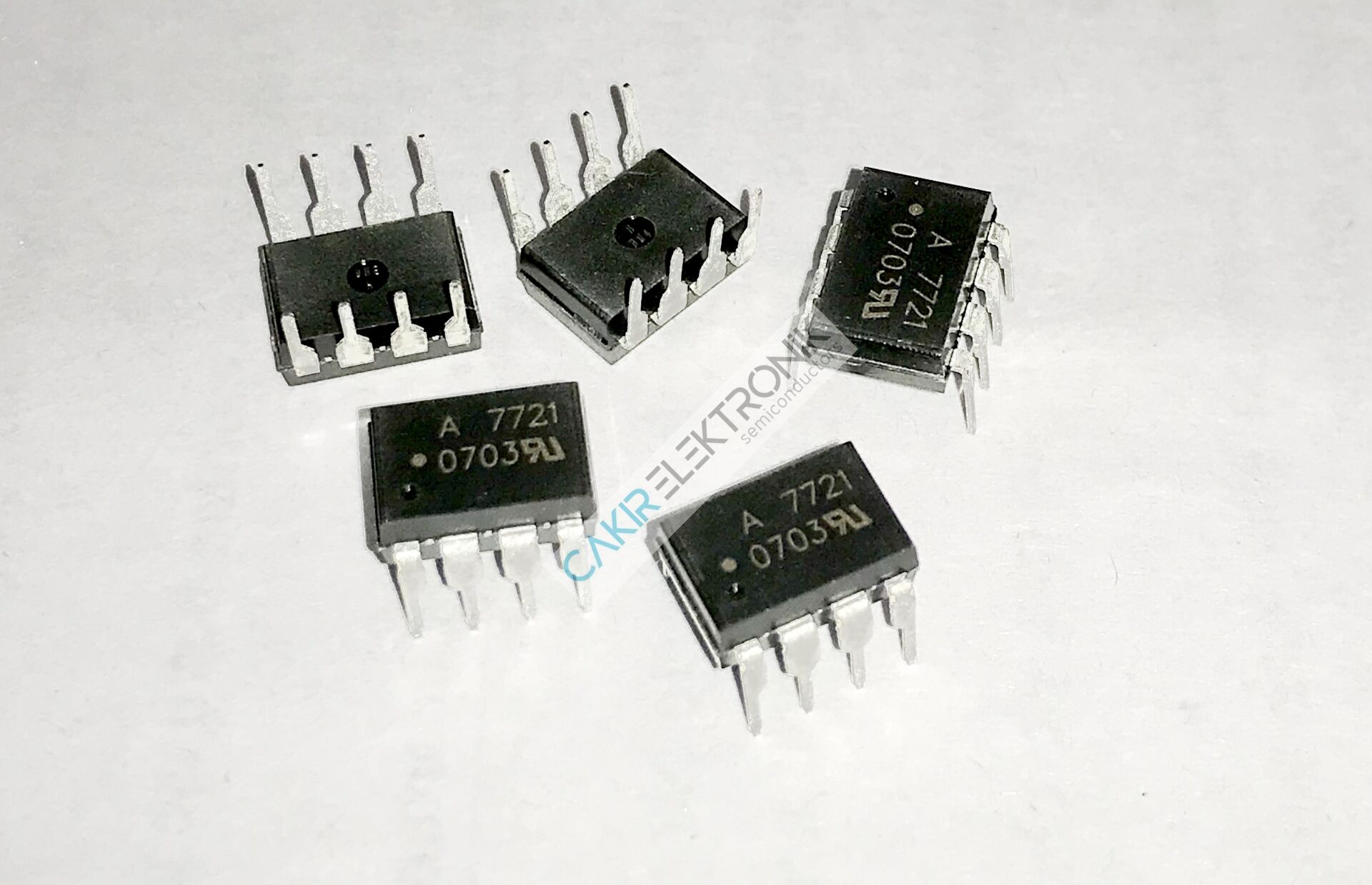

HCPL-7721-000E , HCPL7721 , A7721 , Logic Output Optoisolator 25MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-DIP
Kategori
Stok Kodu
11-5334
9,00 USD + KDV
418,85 TL
Kalan Stok : 10
Logic Output Optoisolator 25MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-DIP
|
Manufacturer
|
Broadcom Limited
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
10kV/µs
|
|
|
Input Type
|
Logic
|
|
|
Output Type
|
Push-Pull, Totem Pole
|
|
|
Current - Output / Channel
|
10 mA
|
|
|
Data Rate
|
25MBd
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
40ns, 40ns
|
|
|
Rise / Fall Time (Typ)
|
9ns, 8ns
|
|
|
Voltage - Forward (Vf) (Typ)
|
-
|
|
|
Current - DC Forward (If) (Max)
|
-
|
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Base Product Number
|
