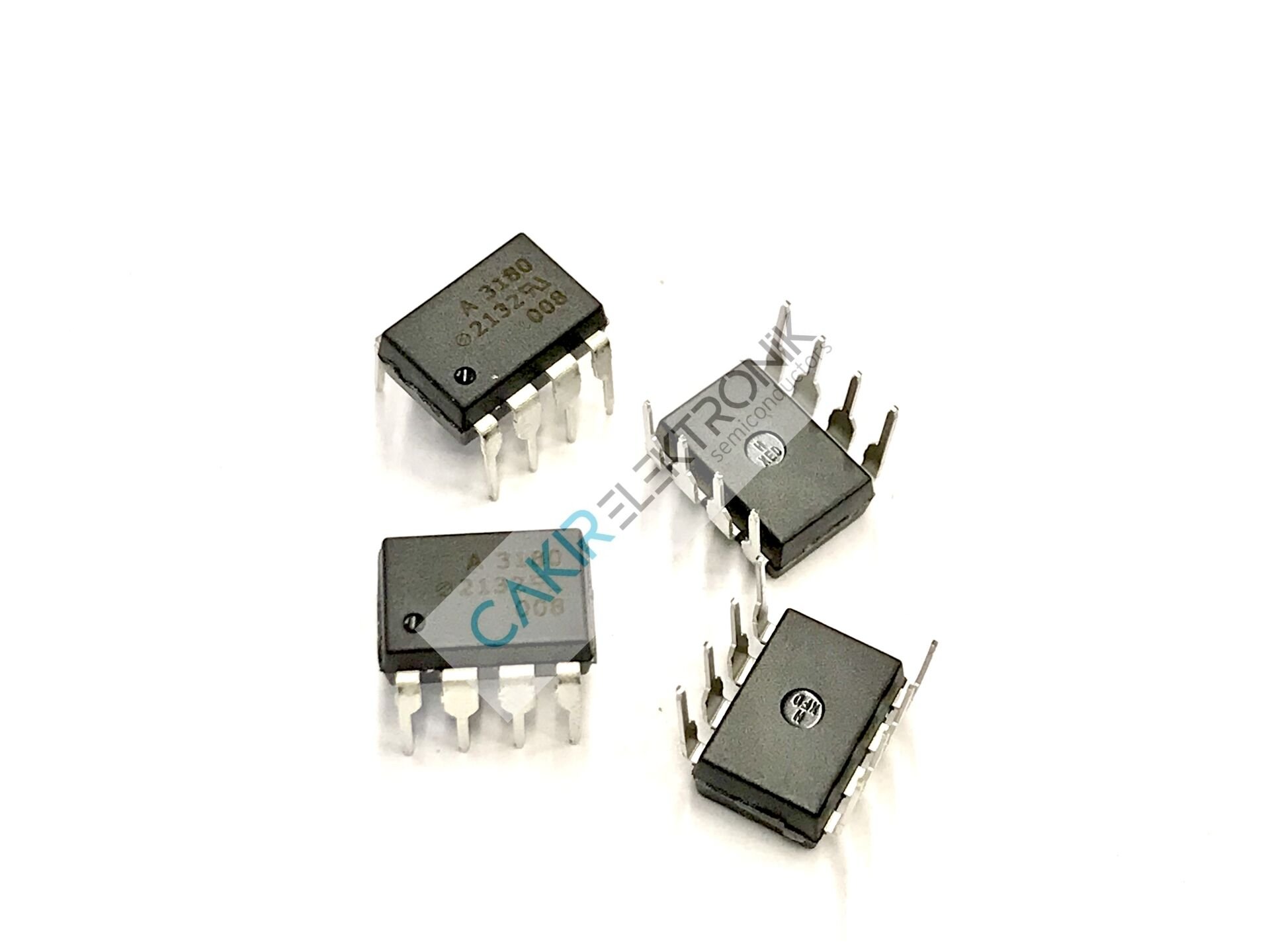

HCPL-3180-000E , HCPL3180 , A3180 DIP , 2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP
Kategori
Stok Kodu
11-5321
2,90 USD + KDV
138,55 TL
Kalan Stok : 20
HCPL-3180-000E , HCPL3180 , A3180 DIP , 2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
10kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
200ns, 200ns
|
|
|
Pulse Width Distortion (Max)
|
65ns
|
|
|
Rise / Fall Time (Typ)
|
25ns, 25ns
|
|
|
Current - Output High, Low
|
2A, 2A
|
|
|
Current - Peak Output
|
2.5A
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.5V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Voltage - Output Supply
|
10V ~ 20V
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Approval Agency
|
CSA, UR
|
|
|
Base Product Number
|
