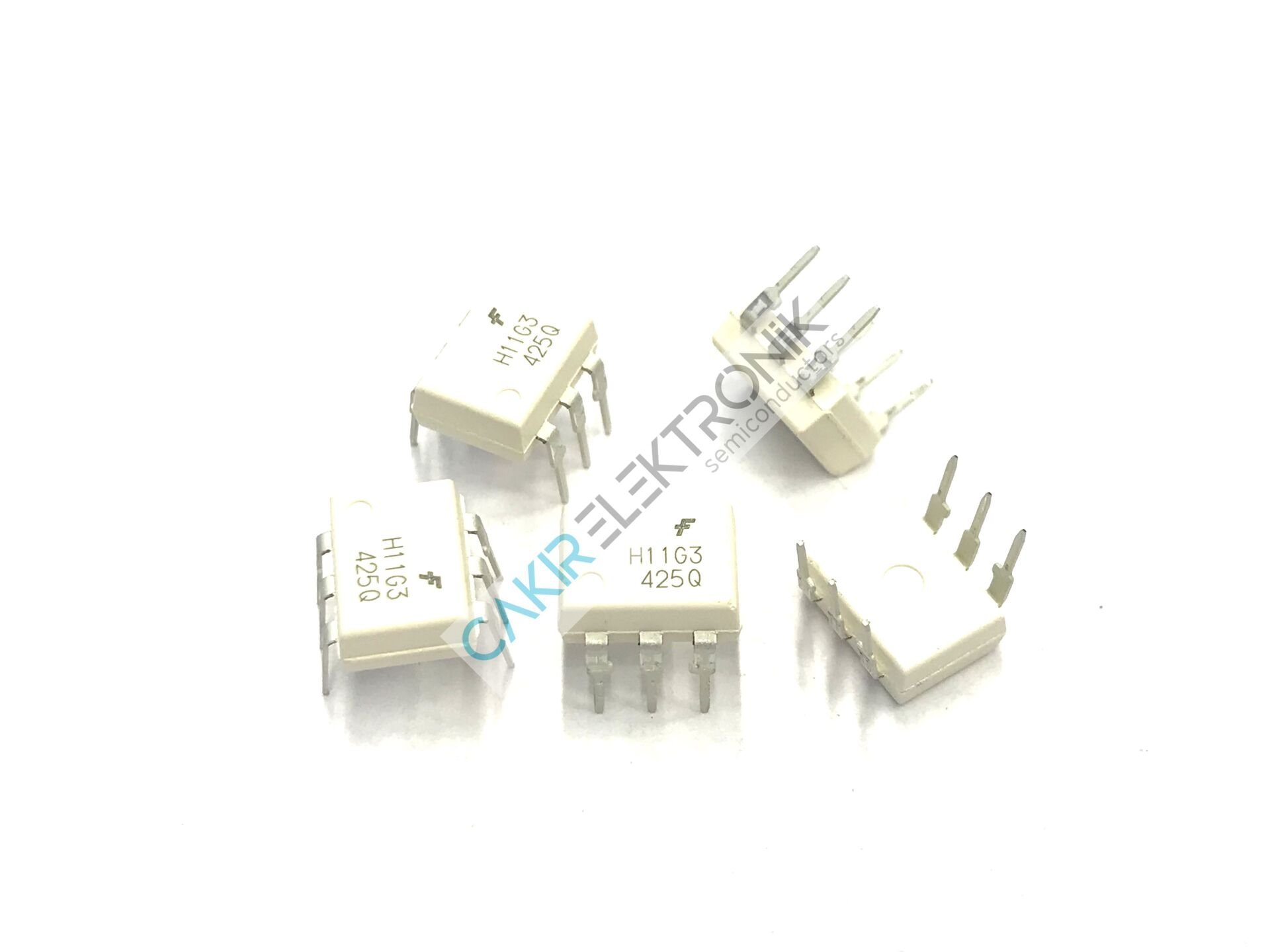

H11G3 , Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
Kategori
Stok Kodu
11-5401
0,80 USD + KDV
37,33 TL
Kalan Stok : 25
H11G3 , Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5300Vrms
|
|
|
Current Transfer Ratio (Min)
|
-
|
|
|
Current Transfer Ratio (Max)
|
-
|
|
|
Turn On / Turn Off Time (Typ)
|
-
|
|
|
Rise / Fall Time (Typ)
|
100µs, 20µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Darlington with Base
|
|
|
Voltage - Output (Max)
|
55V
|
|
|
Current - Output / Channel
|
150mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
1.2V
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Operating Temperature
|
-25°C ~ 100°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
6-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
6-DIP
|
