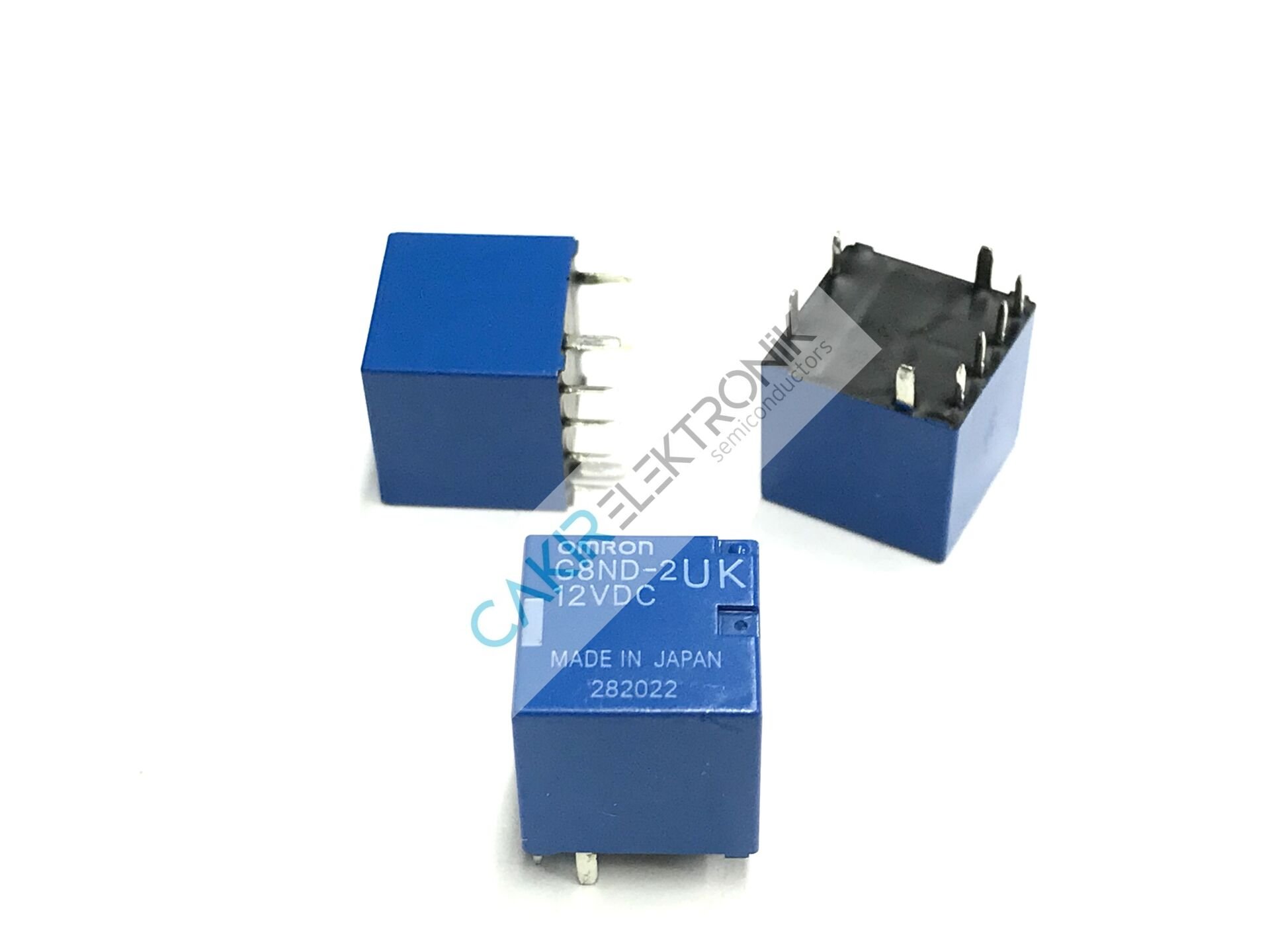

G8ND-2UK - 12V DC 8 PİN

Kategori
Stok Kodu
11-6221
10,00 USD + KDV
540,00 TL
Kalan Stok :  12
G8ND-2UK - 12V DC 8 PİN

Ultra-Miniature Automotive Dual PCB Relay
G8ND2
Ultra-Miniature Automotive Dual PCB Relay

Compact size

High performance PCB relay

25A motor lock load

Fully sealed construction

Fully automated assembly

DPDT (“H” Bridge) contracts

Pre-solder as for all terminal

PWB pattern design is easy

ISO9001/QS9000 series approval
Available Types
G8ND-2 12VDC
G8ND-2S 12VDC
Standard
High Sensitivity
Type
Contact Data
Max Switching Current
Rated Current
Max Switching Voltage
Contact Material
30A
25A Motor load
16V
Silver tin alloy (Cadmium Free)
Coil Ratings
G8ND-2 12VDC
G8ND-2S 12VDC
225
180
Coil Resistance
Type
<7.2
<6.5
Pull in Voltage
Specifications
Temperature Range
Mechanical Life
Electrical Life
Weight
-40 to +85°C
1,000,000 Operations
100,000 Operations
7.5g

Compact size

High performance PCB relay

25A motor lock load

Fully sealed construction

Fully automated assembly

DPDT (“H” Bridge) contracts

Pre-solder as for all terminal

PWB pattern design is easy

ISO9001/QS9000 series approval
Available Types
G8ND-2 12VDC
G8ND-2S 12VDC
Standard
High Sensitivity
Type
Contact Data
Max Switching Current
Rated Current
Max Switching Voltage
Contact Material
30A
25A Motor load
16V
Silver tin alloy (Cadmium Free)
Coil Ratings
G8ND-2 12VDC
G8ND-2S 12VDC
225
180
Coil Resistance
Type
<7.2
<6.5
Pull in Voltage
Specifications
Temperature Range
Mechanical Life
Electrical Life
Weight
-40 to +85°C
1,000,000 Operations
100,000 Operations
7.5g
