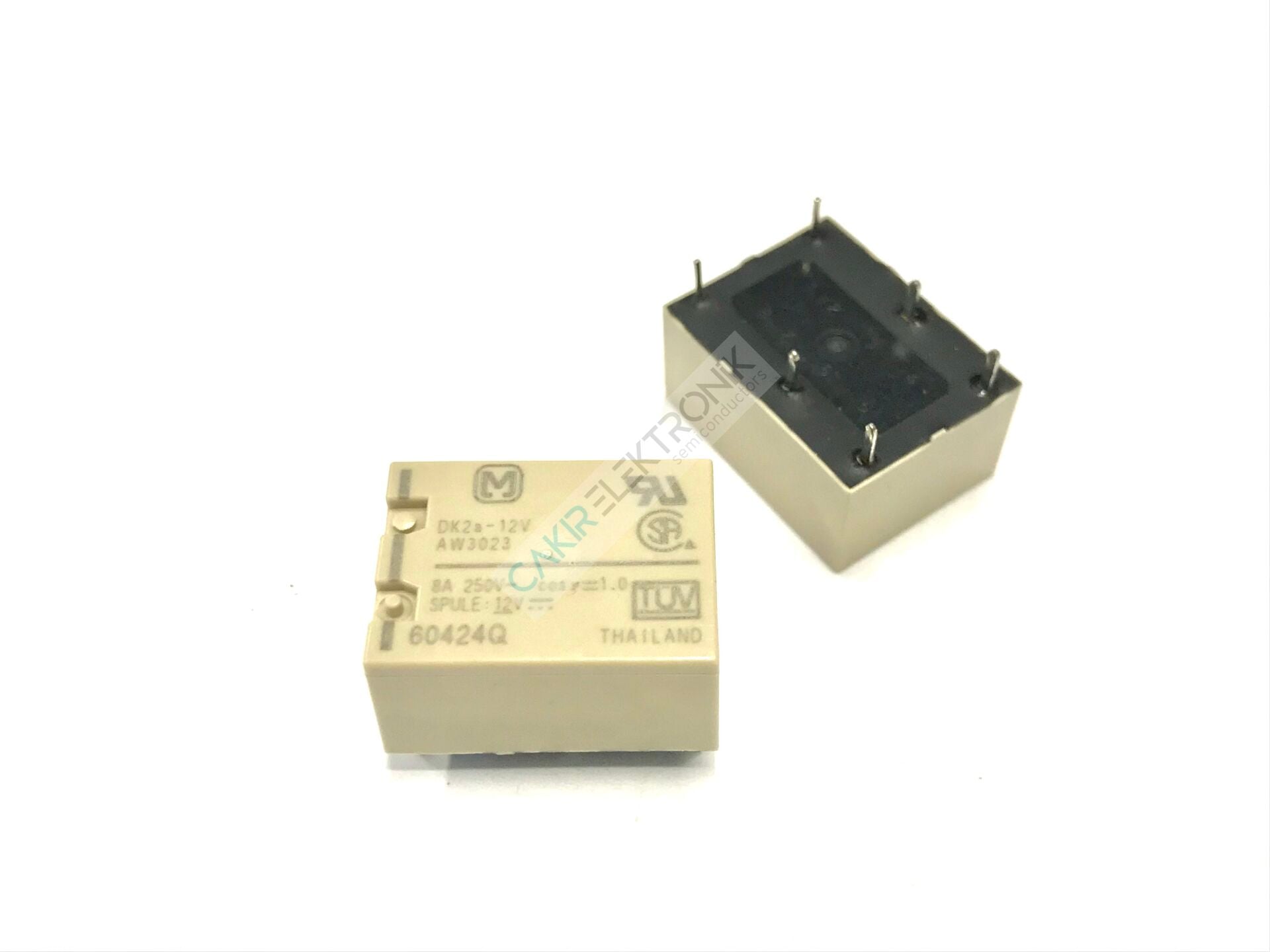

DK2A-12V , DK2a-12v , General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Kategori
Stok Kodu
11-6358
13,00 USD + KDV
741,00 TL
Kalan Stok : 5
DK2A-12V , General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
|
Mfr
|
Seal Rating
Sealed - Fully
|
|
Series
|
Must Operate Voltage
8.4 VDC
|
|
Packaging
Box
|
Must Release Voltage
1.2 VDC
|
|
Part Status
Active
|
Operate Time
10 ms
|
|
Mounting Type
|
Release Time
8 ms
|
|
Coil Voltage
|
Operating Temperature
-40°C ~ 65°C
|
|
Contact Form
DPST-NO (2 Form A)
|
Contact Material
Silver Nickel (AgNi)
|
|
Contact Rating (Current)
8 A
|
Approval Agency
CSA, TUV, UR, VDE
|
|
Switching Voltage
250VAC, 125VDC - Max
|
Relay Type
|
|
Load - Max Switching
2000VA, 1000W
|
Coil Resistance
720 Ohms
|
|
Coil Current
16.7 mA
|
Base Product Number
|
