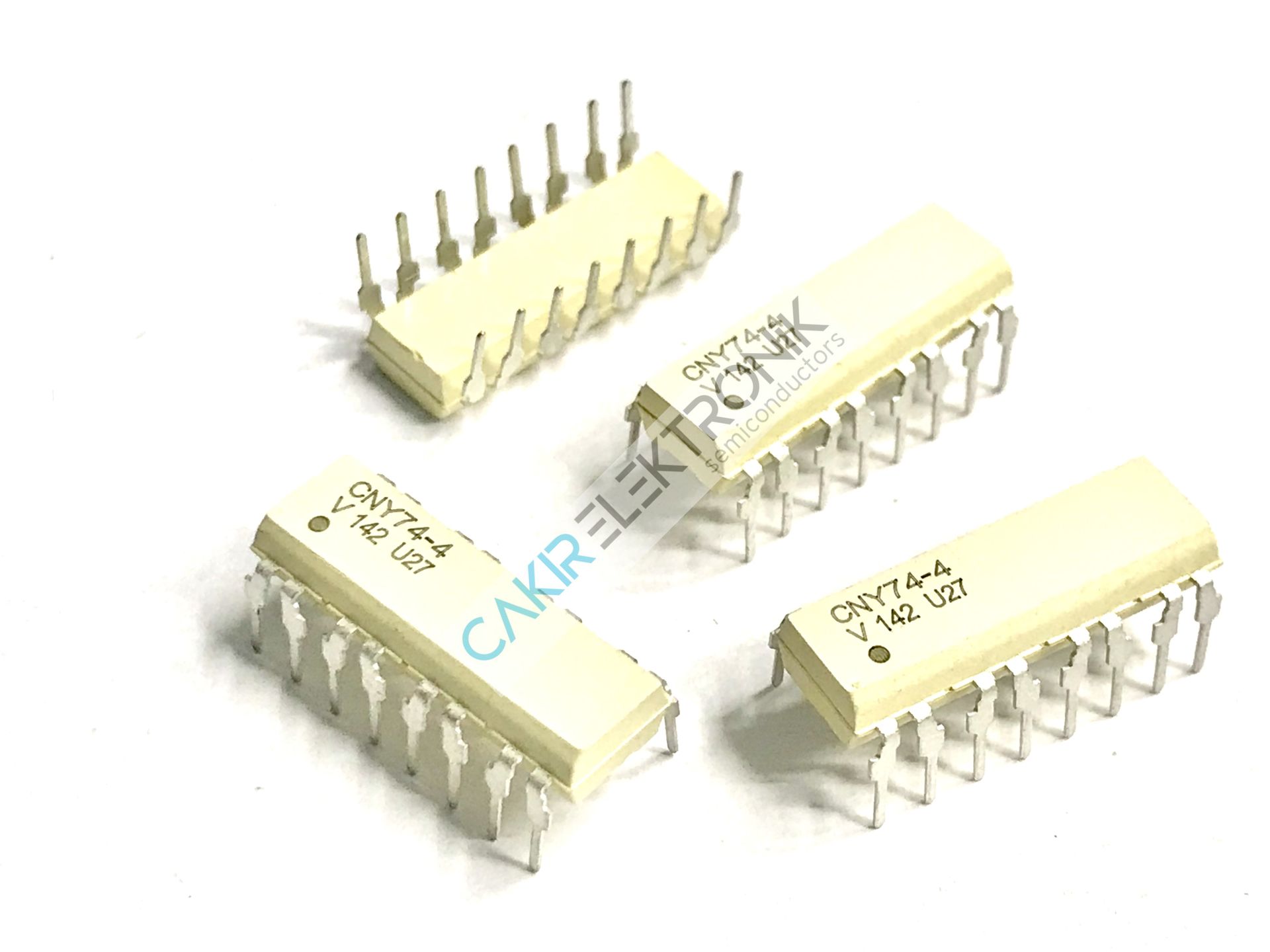

CNY74-4 , CNY74 , Transistor Output Optocouplers Phototransistor Out Quad CTR 50-600% OPTOCOUPLER

IdeaSoft^® | E-Ticaret paketleri ile hazırlanmıştır.

Manufacturer:	Vishay
Product Category:	Transistor Output Optocouplers
RoHS:
Mounting Style:	Through Hole
Package/Case:	DIP-16
Number of Channels:	4 Channel
Isolation Voltage:	5300 Vrms
Output Type:	NPN Phototransistor
Current Transfer Ratio - Min:	50 %
Current Transfer Ratio - Max:	600 %
If - Forward Current:	60 mA
Vf - Forward Voltage:	1.5 V
Maximum Collector Emitter Voltage:	70 V
Maximum Collector Current:	50 mA
Maximum Collector Emitter Saturation Voltage:	300 mV
Rise Time:	3 us
Fall Time:	4.7 us
Vr - Reverse Voltage:	3 V
Pd - Power Dissipation:	500 mW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 100 C
Series:	CNY
Packaging:	Tube
Brand:	Vishay Semiconductors
Configuration:	4 Channel
Current Transfer Ratio:	50 %
Height:	3.6 mm
Length:	19.7 mm
Product Type:	Transistor Output Optocouplers
	1000
Subcategory:	Optocouplers
Width:	6.3 mm
Part # Aliases:	CNY74-4
Unit Weight:	1,100 g

CNY74-4 , CNY74 , Transistor Output Optocouplers Phototransistor Out Quad CTR 50-600%
