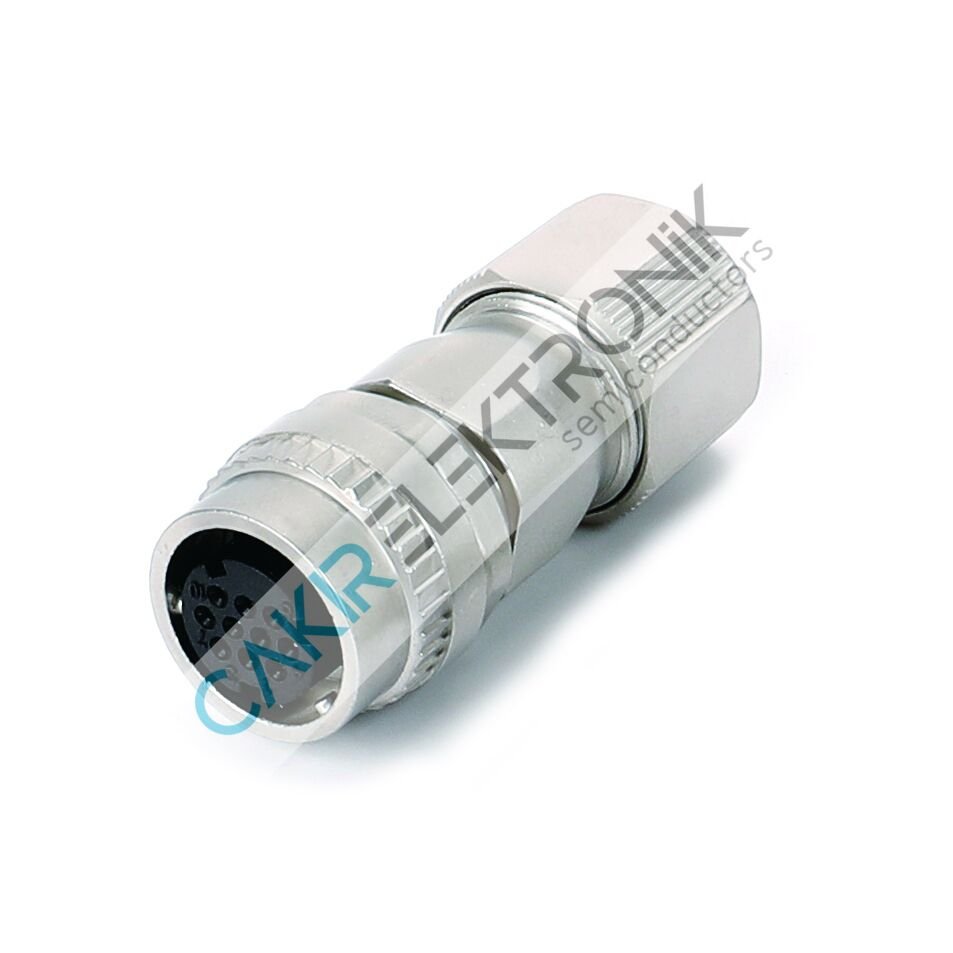

CM10-10P FEMALE 180C - CM10-SP10-M 180C - CM 10-10P FEMALE 180C - CM10-10P 180C FEMALE

CM10(DDK)10P弯头连接器端子(terminal):Copper alloy,Contact area plated G/F主体铁壳(shell):Zinc,Plated Ni胶体&后塞(housing&cover):PA66,Black外壳颜色(color):NA电气特性(Electrical characteristics):a)  Contact Currect Rating:5 Ampb)  Dielectric Withstanding Voltage:500V ACc)  Insulation Resistance:500MΩ/Mind)  Contact Resistance: 30mΩ/Maxe)  Operaion Temperature: -20℃～+85℃产品应用(Application):Servo peripheral环保标准(Environmental standards):Rohs compliant
