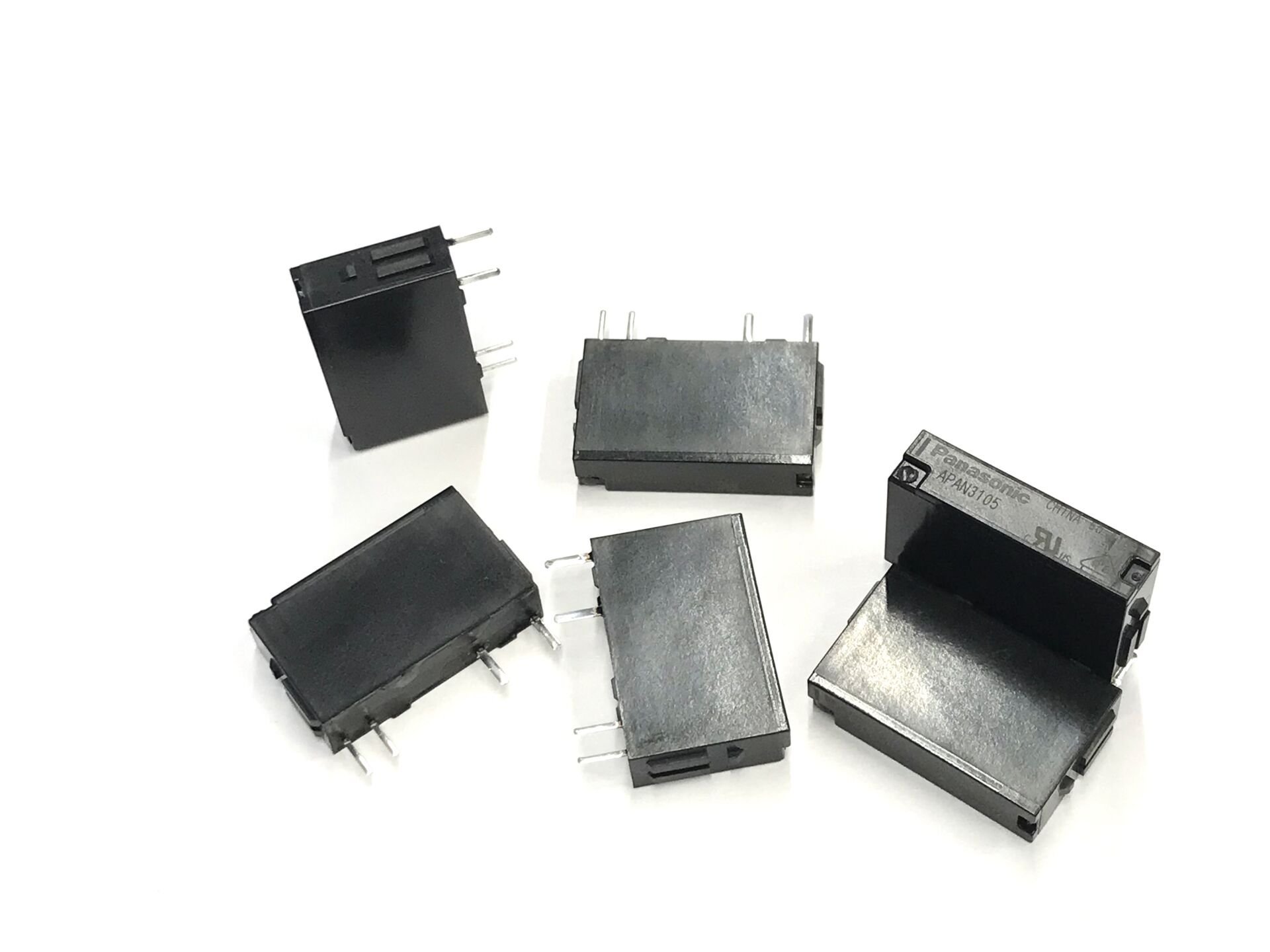

APAN3105 -PA1A-5V DC - PA1A-5V - POWER RELAY - PA-N RELAY - 5V - SLİM RÖLE
Kategori
Stok Kodu
11-6134
APAN3105 -PA1A-5V DC - PA1A-5V - POWER RELAY - PA-N RELAY - 5V - SLİM RÖLE
APAN3105
-PA1A-5V DC - PA1A-5V - POWER RELAY - PA-N RELAY - 5V - SLİM RÖLE
Mfr
Seal Rating
Sealed - Fully
Series
Must Operate Voltage
3.5 VDC
Packaging
Tube
Must Release Voltage
0.25 VDC
Part Status
Active
Operate Time
10 ms
Mounting Type
Release Time
5 ms
Coil Voltage
Operating Temperature
-40°C ~ 90°C
Contact Form
SPST-NO (1 Form A)
Contact Material
Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)
5 A
Approval Agency
cURus, VDE
Switching Voltage
250VAC, 110VDC - Max
Relay Type
Load - Max Switching
1250VA, 150W
Coil Resistance
227 Ohms
Coil Current
22 mA
Base Product Number
Coil Type
Non Latching
-PA1A-5V DC - PA1A-5V - POWER RELAY - PA-N RELAY - 5V - SLİM RÖLE
