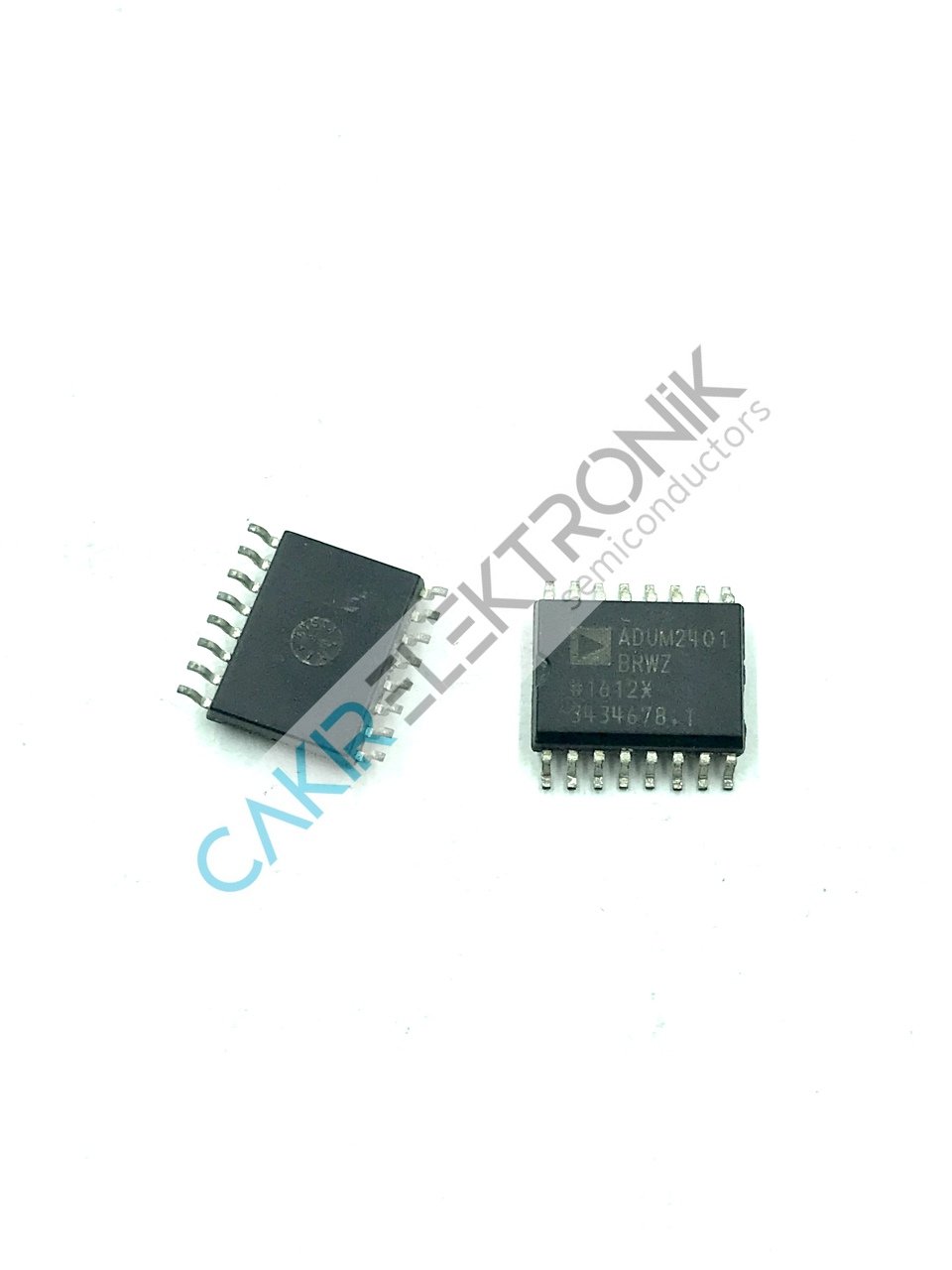

ADUM2401BRWZ - ADUM2401 - General Purpose Digital Isolator 5000Vrms 4 Channel 10Mbps 25kV/µs CMTI 16-SOIC (0.295'', 7.50mm Width)
Kategori
Stok Kodu
11-13
ADUM2401BRWZ - ADUM2401 - General Purpose Digital Isolator 5000Vrms 4 Channel 10Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Magnetic Coupling
|
|
|
Type
|
General Purpose
|
|
|
Isolated Power
|
No
|
|
|
Number of Channels
|
4
|
|
|
Inputs - Side 1/Side 2
|
3/1
|
|
|
Channel Type
|
Unidirectional
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
|
Data Rate
|
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
50ns, 50ns
|
|
|
Pulse Width Distortion (Max)
|
3ns
|
|
|
Rise / Fall Time (Typ)
|
2.5ns, 2.5ns
|
|
|
Voltage - Supply
|
2.7V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Base Product Number
|
