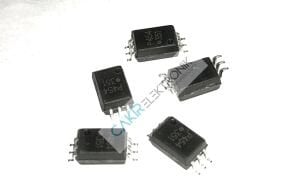

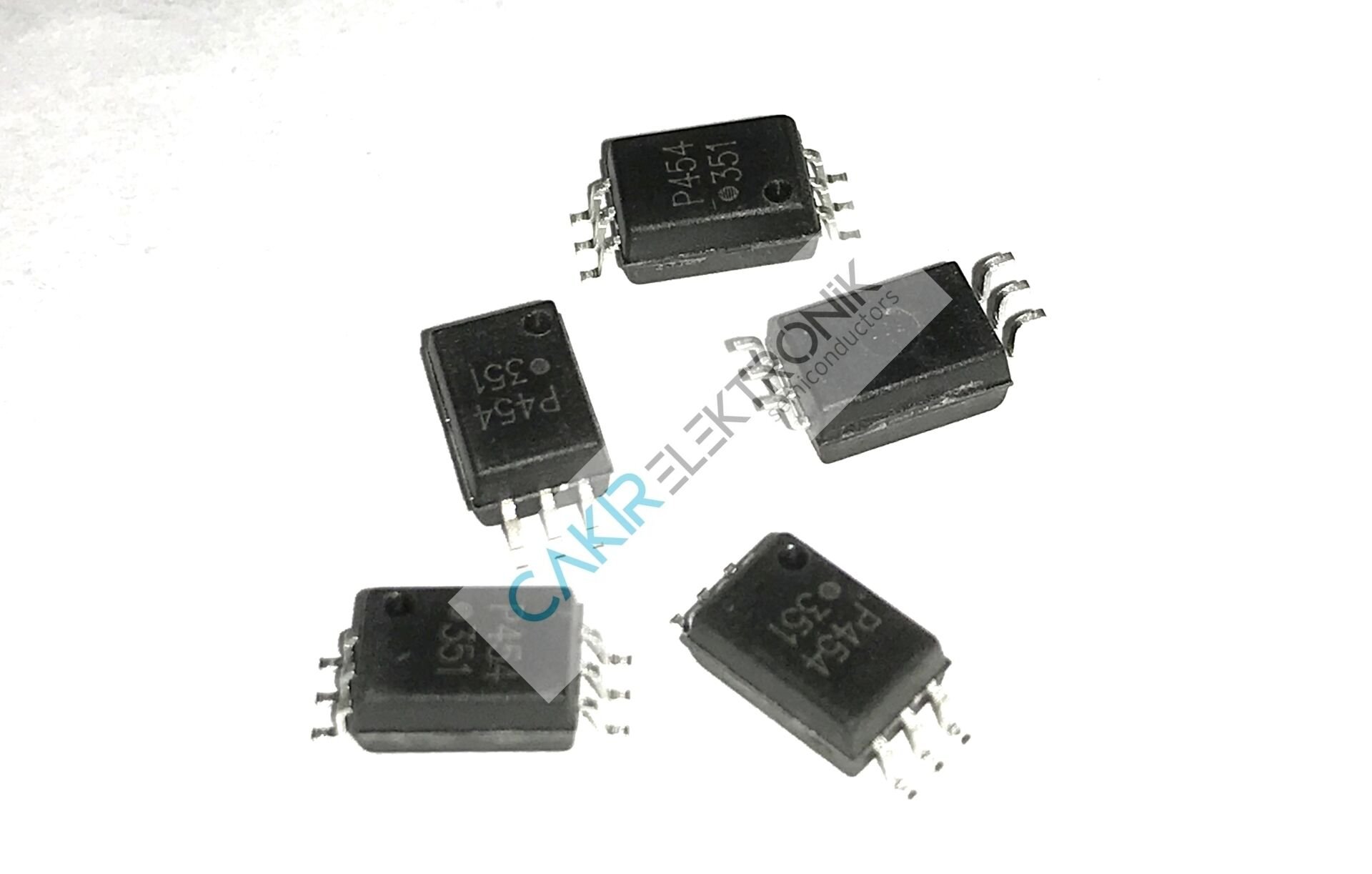

ACPL-P454-500E , ACPL-P454-500E , P454 , ACPLP454 , Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO Stretched
Kategori
Stok Kodu
11-5371
5,00 USD + KDV
235,20 TL
Kalan Stok : 20
ACPL-P454-500E , ACPL-P454-500E , P454 , ACPLP454 , Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO Stretched
|
Manufacturer
|
Broadcom Limited
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
25% @ 16mA
|
|
|
Current Transfer Ratio (Max)
|
60% @ 16mA
|
|
|
Turn On / Turn Off Time (Typ)
|
200ns, 300ns
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
20V
|
|
|
Current - Output / Channel
|
8mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.5V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Vce Saturation (Max)
|
-
|
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.268", 6.80mm Width)
|
|
|
Supplier Device Package
|
6-SO Stretched
|
|
|
Base Product Number
|
