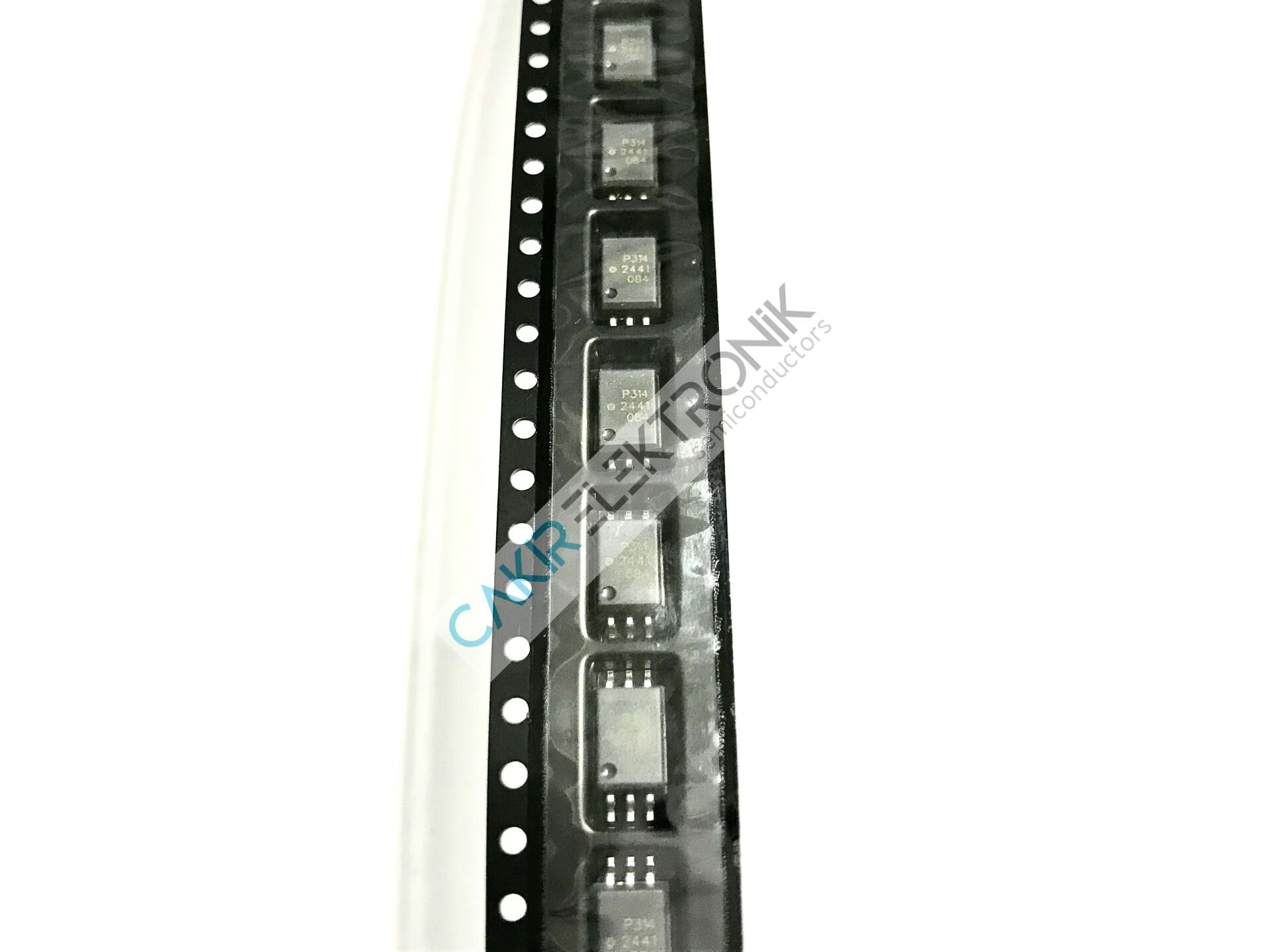

ACPL-P314-500E , P314 , 600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO
Kategori
Stok Kodu
11-6261
3,60 USD + KDV
190,08 TL
Kalan Stok : 15
ACPL-P314-500E , P314 , 600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
700ns, 700ns
|
|
|
Pulse Width Distortion (Max)
|
-
|
|
|
Rise / Fall Time (Typ)
|
50ns, 50ns
|
|
|
Current - Output High, Low
|
400mA, 400mA
|
|
|
Current - Peak Output
|
600mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.5V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Voltage - Output Supply
|
10V ~ 30V
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.268", 6.80mm Width)
|
|
|
Supplier Device Package
|
6-SO
|
|
|
Approval Agency
|
CSA, UR
|
|
|
Base Product Number
|
