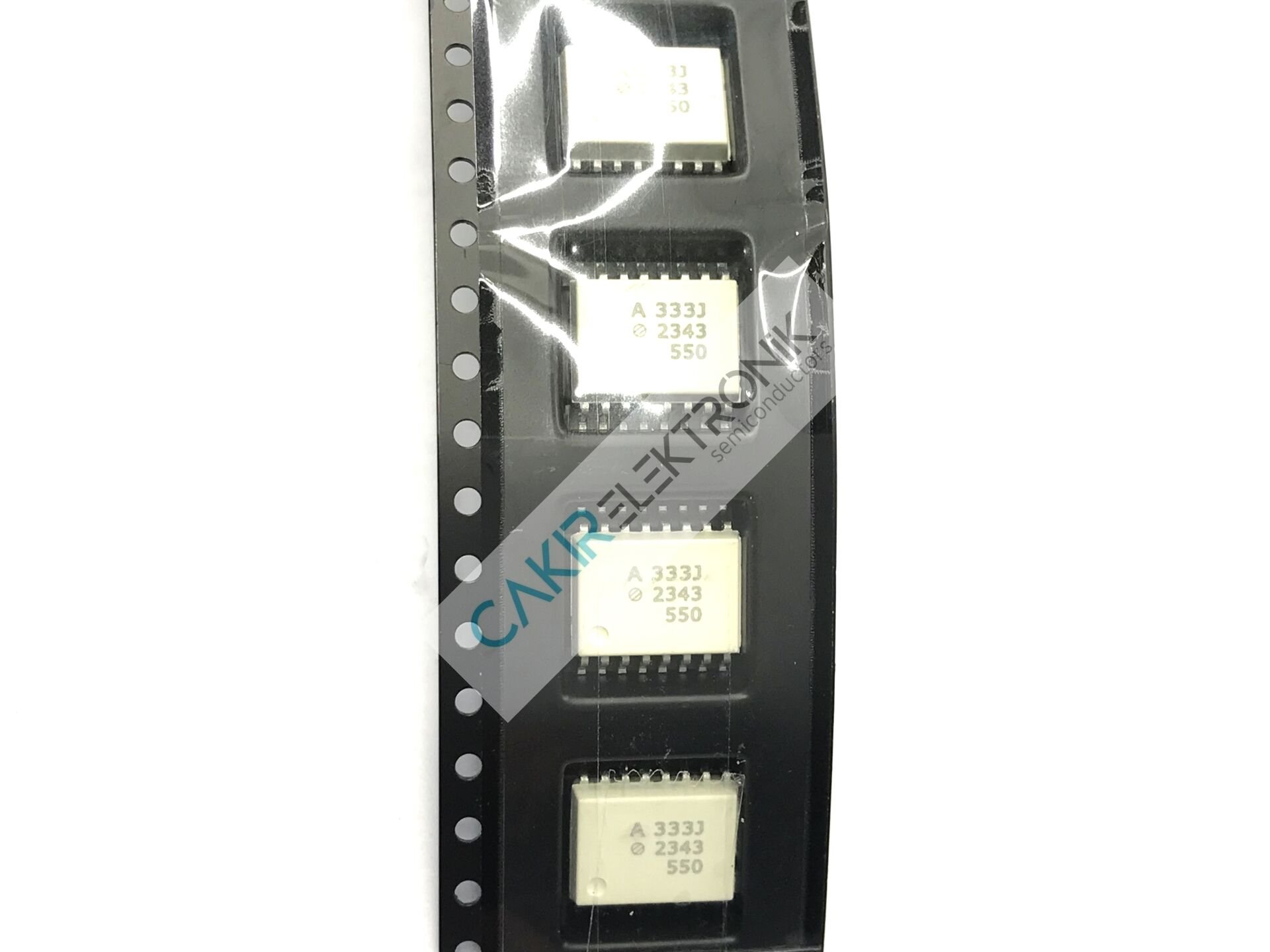

ACPL-333J-500E , A333 , A333J , A 333J , 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
Kategori
Stok Kodu
11-5388
4,50 USD + KDV
211,68 TL
Kalan Stok : 10
ACPL-333J-500E , A333 , A333J , A 333J , 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SO
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
15kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
250ns, 250ns
|
|
|
Pulse Width Distortion (Max)
|
100ns
|
|
|
Rise / Fall Time (Typ)
|
50ns, 50ns
|
|
|
Current - Output High, Low
|
2A, 2A
|
|
|
Current - Peak Output
|
2.5A
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.6V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Voltage - Output Supply
|
15V ~ 30V
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package
|
16-SO
|
|
|
Approval Agency
|
CSA, IEC/EN/DIN, UR
|
|
|
Base Product Number
|
