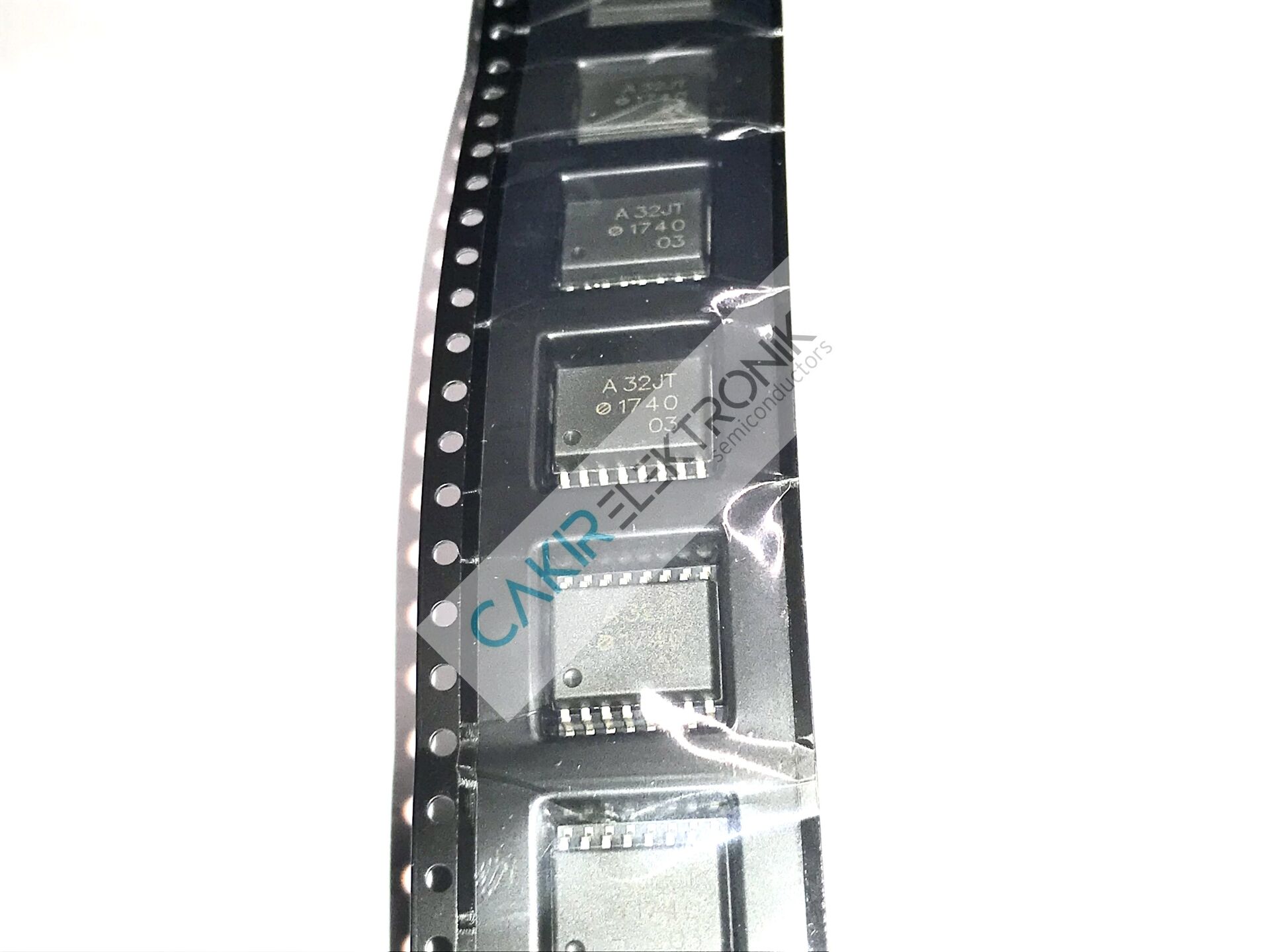

ACPL-32JT-000 , A32JT , A 32JT , ACPL32 , 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SOIC
Kategori
Stok Kodu
11-5389
12,00 USD + KDV
564,48 TL
Kalan Stok : 10
ACPL-32JT-000 , A32JT , A 32JT , ACPL32 , 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SOIC
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
30kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
250ns, 250ns
|
|
|
Pulse Width Distortion (Max)
|
140ns
|
|
|
Rise / Fall Time (Typ)
|
70ns, 35ns
|
|
|
Current - Output High, Low
|
750mA, 1A
|
|
|
Current - Peak Output
|
2.5A
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
|
|
Current - DC Forward (If) (Max)
|
20 mA
|
|
|
Voltage - Output Supply
|
18V ~ 22V
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Approval Agency
|
CSA, IEC/EN/DIN, UR
|
|
|
Base Product Number
|
