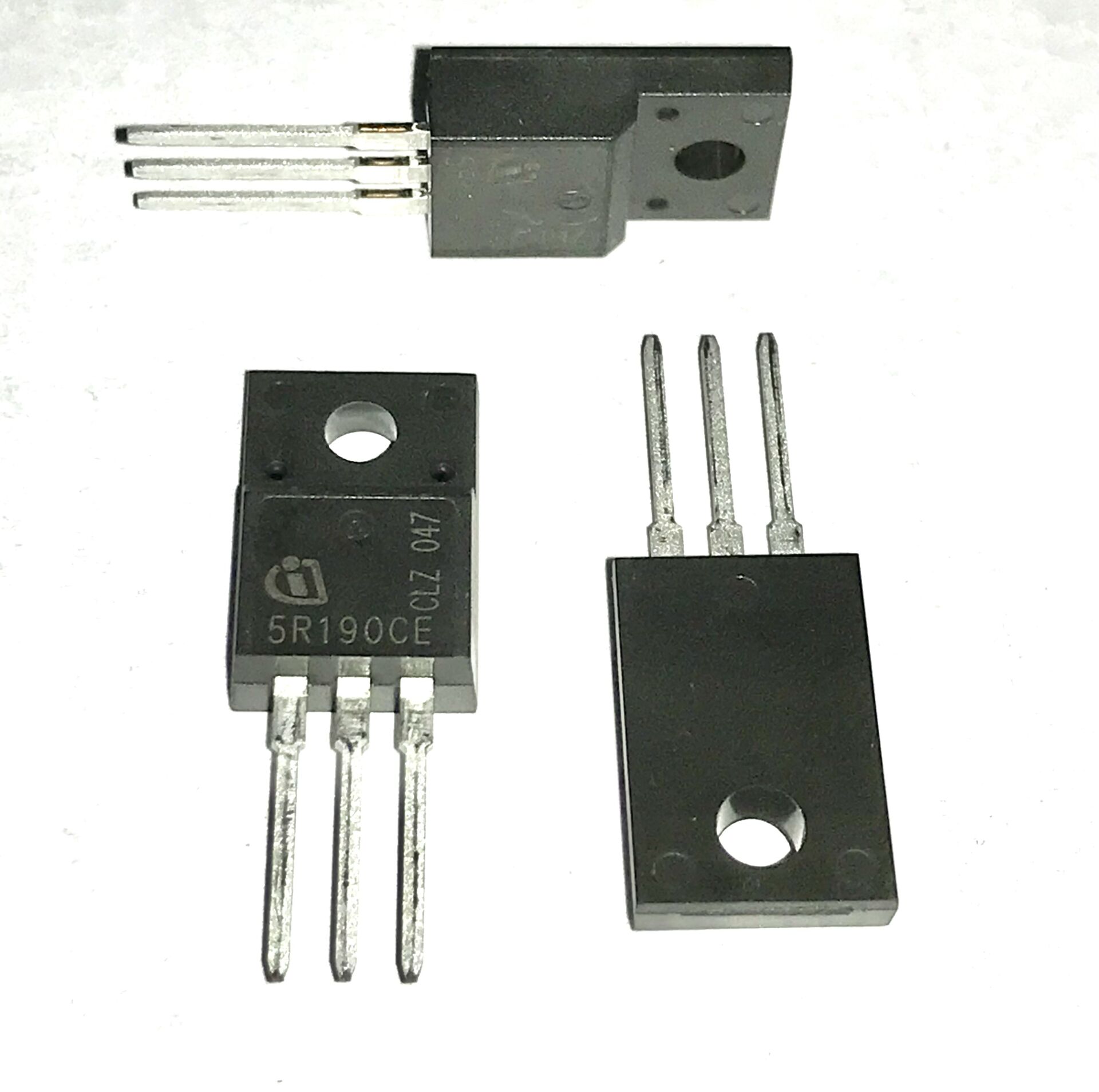

5R190CE , IPA50R190CE , 50R190CE , N-Channel 500 V 18.5A (Tc) 32W (Tc) Through Hole PG-TO220-FP
Kategori
Stok Kodu
11-4386
3,50 USD + KDV
176,40 TL
Kalan Stok : 30
5R190CE , IPA50R190CE , 50R190CE , N-Channel 500 V 18.5A (Tc) 32W (Tc) Through Hole PG-TO220-FP
|
|
||
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
500 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
13V
|
|
|
Rds On (Max) @ Id, Vgs
|
190mOhm @ 6.2A, 13V
|
|
|
Vgs(th) (Max) @ Id
|
3.5V @ 510µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
47.2 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1137 pF @ 100 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
32W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
PG-TO220-FP
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
