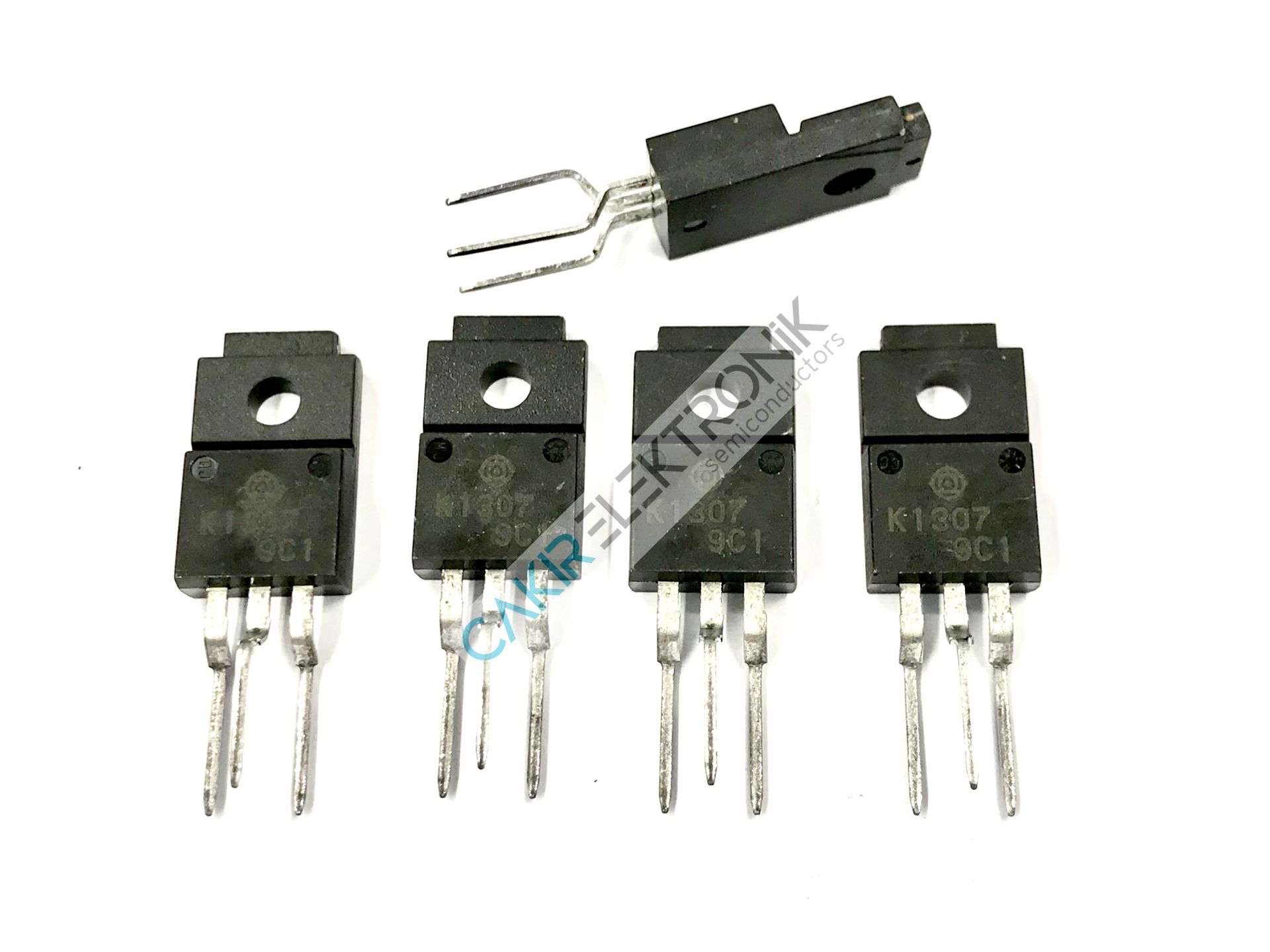

2SK1307

Type Designator: 2SK1307

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 35 W

Maximum Drain-Source Voltage |Vds|: 100 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Drain Current |Id|: 20 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 100 nS

Drain-Source Capacitance (Cd): 540 pF

Maximum Drain-Source On-State Resistance (Rds): 0.085 Ohm

Package: TO220FM
