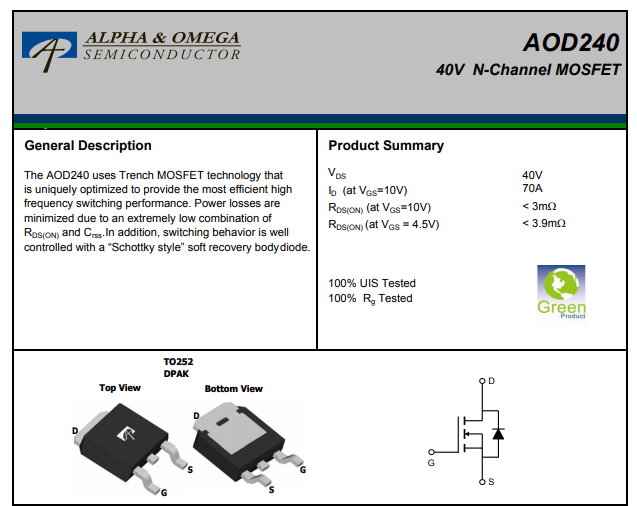

AOD240 - D240 - N KANAL 40V. 70A. MOSFET - TO252
Kategori
Stok Kodu
11-4708
32,27 TL + KDV
38,72 TL
Kalan Stok : 101
|
Mfr |
|
|
|
Series |
- |
|
|
Package |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel® |
|
|
Product Status |
Not For New Designs |
|
|
FET Type |
|
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
|
|
|
Current - Continuous Drain (Id) @ 25°C |
|
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V |
|
|
Rds On (Max) @ Id, Vgs |
3mOhm @ 20A, 10V |
|
|
Vgs(th) (Max) @ Id |
2.2V @ 250µA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
60 nC @ 10 V |
|
|
Vgs (Max) |
±20V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
4300 pF @ 20 V |
|
|
FET Feature |
- |
|
|
Power Dissipation (Max) |
2.7W (Ta), 150W (Tc) |
|
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
|
|
Mounting Type |
|
|
|
Supplier Device Package |
TO-252 (DPAK) |
|
|
Package / Case |
|
|
|
Base Product Number |
